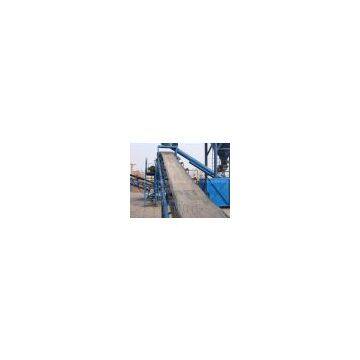

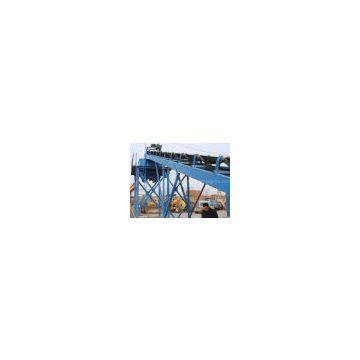

Belt Conveyer

Brand Name	LIMING		Place of Origin	China
Model Number	Belt Width 500~1200(mm)

Belt conveyers consist of standard parts, which are advanced and simple in structure, easy to maintain. Our  Belt conveyer equipment is adaptable for stationary and mobile crushing plants. They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. According to different transferring equipment, the transfer system can be one independently or multi-conveyers or combined with other transfer equipments. The belt conveyer can be installed horizontally or aslope to meet the needs of different transfer lines.

The belt conveyers produced by SJLC can be operated in the circumstance temperature range from -20 to +40. The temperature of transferred material by this belt conveyer should be lower than 50.

  The types of the belt conveyers produced by SJLC are as follows:

 1. Devided by Driving Method:
  a. STD-Mechanical Drive
  It's driven by cycloidal pinwheel reducer (with outdoor motor ) and chain-drive mechanism.
  b. STDJ Mechanical Drive Series .
  It adopts upside-down reducer and belt-drive mechanize.
  c. STD-Electric Rotor Drive Series
  It's driven by electric rotor.

 2. Divided by Installation Methods
 a. Fixed Series
  It's directly installed on foundation.
  b. SDY-Portable Series
  It's equipped with type for moving and slope adjusting capability, It can be Easily, it can be reely moved and adjusted by different transfer requirements

  3. Divided by Structures:
  The belt conveyers produced by SJLC have three different structures.
  a. U-steel
  b. Frame
  c. Truss

NOTE:
There are two kinds of conveyers, one equipped with repairing walkway while the other without. When ordering the machine, the customers should give us clear instruction.
