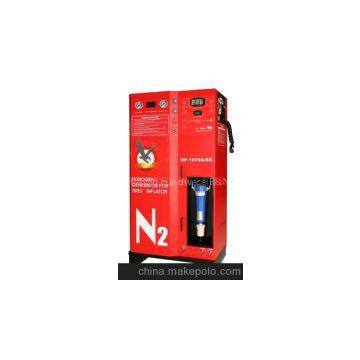

Nitrogen Generator & Inflator Machine for Heavy Pressure for Heavy Truck

Brand Name	ZHOUPU		Place of Origin	China
Model Number	ZP-1690A/LCD

Heavy Pressure for Heavy Truck (Nitrogen Generator & Inflator Machine) Raw material from compressed air Heavy duty suit for heavy truck Fast nitrogen generation & inflation speed Automatic Nitrogen generator Automatic shut-off after nitrogen generation Two Sets of large capacity CMS filter Two Stage pre-filters for water/oil seperator High precision water/oil seperator suitable for heavy pressure Inside pipes made by metal,suitable for heavy pressure purposes 70L tank inside and 130L tank outside Quick coupler to connect the \'Vaccum Generator & N2 Inflator device \' with the machine by two 10meters length hoses Suit For: Car & Light Truck & HEAVY TRUCK Power Supply: 110/220V±10%,50/60Hz Power Consumption: 30W Nitrogen Generated: PSA Technology Nitrogen Purity: 95~99% Air Inlet Pressure: 15kg/cm2;215PSI Air compressor required: 7.5~11KW,15kg/cm2, Exhaust volume: 1~1.5M3/min, Nitrogen Outlet Pressure: 13kg/cm2;185PSI N2 Output Capacity: 80~100L/Min;21-26.5Gallon/Min,2.8~3.5CFM N2 Tank Capacity: 70L/18.5Gallon inside; 130L/34.5Gallon outside Measure Unit: KG/CM2 & PSI Max. Pressure for N2 Tank: 13.5KG/CM2 Sensor Precision: 5PSI Operating Temperature: 0-50°C,0-122°F Standard Accessories: Two 10m length rubber hoses+Vaccum Generator & N2 Inflator device Optional: 220L/58Gallon N2 Tank External Packing &N.W./G.W.: 745*550*1500MM (29.3*21.7*59.1inch;148/172kgs326.3/379.2LBSwooden case 20ft/40ft container: 33PCS/66PCS
