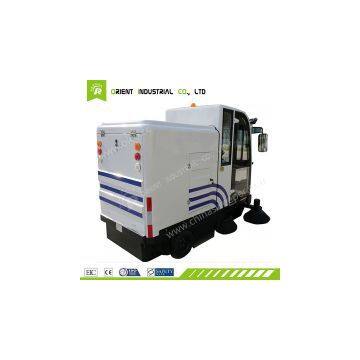

Asphalt Sweeper Cars

OR-800LD
New type all closed self-discharging sweeper
The new fully enclosed Sweeper is with an enclosed cab, suitable for use in cold, harsh environments, performance characteristics
1. 48V Lithium battery pack as the power, energy saving, longer continuous use.
2 fully enclosed cab, to avoid the impact of inclement weather, noise, and other conditions of the clean-up work.
3 the humane design concept provide a safe and comfortable operating environment with the user.
4. Using advanced filtering system, the filter area is bigger and with the stronger vacuum.
5. The drive system set to increase the volume of trash.
6. Cab bilateral door designs on both sides of the door can be independent switch.
7. The windshield configuration Anti-fog facilities to avoid due to the temperature difference between the glass surface atomization.
8. The cab glass hyperboloid streamlined design, interior with sunshade.

II. PARAMETERS:
No. Item Name Unit MN-E800LD
1 Sweeping paths mm >1900
2 productivity m2/h >12000
3 Max climbing capacity % 25
4 Length of main brush mm 800
5 Power supply v 48V Li battery pack
6 Continuous work time h 6-8
7 Waste hopper capacity L 170
8 Water tank capacity L 50
9 Side brush diameter mm 500
10 Driving power（motor） w 2000-2100
11 Operation power（motor） w 800+500+80*4+50
12 Turn semi-diameter mm 1200（spot turn）
13 Dimensions(L/W/H) mm 2250*2000*2150
14 Max Work speed km/h 7
15 Max Driving speed km/h 9.8
16 Filter surface m2 5
17 The garbage box overturn lifting height cm ≥900
18 Weight with batteries (N.W.) kg 1080
