Automatic H-beam Assembling Machine with 2000mm - 18000mm Web Height , Blue

Brand Name	Sunny		Place of Origin	China
Model Number	HG-1800

Delivery Time:30 work days
Certification:Certification of original

Automatic H-beam Assembling Machine with 2000mm - 18000mm Web Height , Blue

Kindly Noted:

Customer could choose Web height 1500mm or 1800mm Voltage standard is 380V , 50HZ , 3PH. Other voltage please kindly let us know. Customer should provided us technical parameters,such as the web height,web thickness,flange height and thickness. We could according to customer’s requirement,realize automatic spot welding 5.With 2 sets of KR 350 welding machine

Description:

HG-1800 ASSEMBLING MACHINE is a specially designed for the molding of H-beam .During the assembling of the H-beam , hydraulic clamp is used for synchronized camping and automatic centering to guarantee the accurate positioning of former of different width during the specified range.

Applications:

HG-1800 H-beam assembling machine is used for produce H-beam,auto centering and spot welding.

Specifications:

Height of the Web	180-1800mm
Thickness of the Web	6-32mm
Height of the Flange	150-800mm
Thickness of Flange	6-40mm
Length of the Work Piece	2000-18000mm
Length of the Roller Way	28000mm
Assembling Speed	500-1200mm/min

Draft drawing:

Competitive Advantage:

1.Adopt Inverter to control the feeding

2.Use hydraulic pressure system,has filter to guarantee the long-term reliable operation of the electromagnetic valve

3.Using famous electric ,such as Siemens or Schneider

4.Automatic spot welding and adopt Panasonic KR350 welding machine.

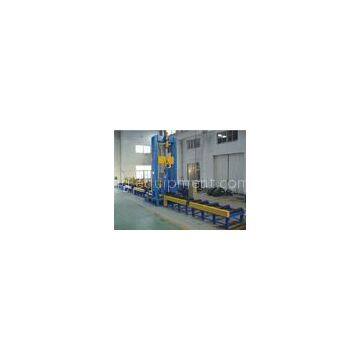

Detailed pictures for reference:

Installation and commissioning:

If customer need installation and commissioning,we’ll send 3 workers to customer’s factory ,including one machinery worker,one electrician and one translator.But customer should pay the cost of installation and commissioning.

Why always Sunny?

1. 360°guarantee makes ordering risk free.

2. 20 years welding machine manufacture experiences.

3. one-stop service of welding.

4. OEM service.

5. Quickly feedback for your problems.
