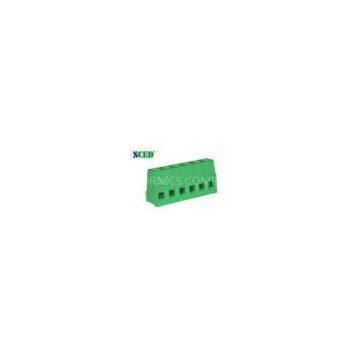

Pitch 5.0mm, 300V 10A, 2P-24P, PCB Terminal blocks , PCB screw terminal blocks, Euro type Raising se

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	SCED		Place of Origin	China
Model Number	TJ500-00-D1

Delivery Time:7-20 working days
Certification:UL, CE

Type:	PCB Terminal blocks, ??PCB screw terminal blocks, ?????????????Euro type Raising series	Pitch:	5.0mm
Rated Voltage:	300V	Rated Current:	10A
Standard Color:	Green, other color is available	Number Of Contacts:	2P-24P
Wire Range:	12-26AWG	Applications:	PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Elevator, etc.

Pitch 5.0mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■Right angle wire inlet;? □Vertical wire inlet;? □45 degree wire inlet

■Single Deck;? □Double decks;? □Triple decks

Parameter and Drawing Specifications:

UL Technical Data	B	C	D
Rated Voltage / Current????????????? V/A	300/10		300/10
Wire Range?????????????????????? AWG	12-26		12-26
IEC Technical Data
Overvoltage Category	Ⅲ	Ⅲ	Ⅱ
Contamination Class	3	2	2
Rated Voltage / Current????????????? V/A	250 / 10	400 / 10	630 / 10
Rated Surge Voltage???????????????? KV	4	4	4
Rated Connecting Capacity?????????? mm2	2.5
Material
Insulation Material / Inflammability Class	PA66 / UL94, V-0
Clamp Cage / Plating	Brass / Nickel Plated
Terminal / Plating	Brass / Tin Plated
Screw / Plating	Steel / Zinc Plated
Other Data
PCB Hole Diameter????????????????? mm	φ1.4
Stripping Length??????????????????? mm	6-7
Screw / Torque?????????? ?????????/ lbf.in	M3 / 4.4-5.3

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Competitive Advantage:

Stable good quality Competitive price Quickly response Full range products for selection Flexible to design the exact part per customers’ demand
