Home > Products > C purlin roll forming machine > C profile purline roll forming machine equipment
C profile purline roll forming machine equipment
- T/T L/C D/P D/A
- 7 days
You May Like
-
Steel metal C profile purline roll forming machine equipment
-
C channel purline roll forming machine equipment
-
Adjustable C profile purline roll forming machine equipment
-
Wuxi manufacturer C channel purline roll forming machine equipment
-
Adjustable C profile purline roll forming machine equipment
-
Wuxi adjustable C channel purline roll forming machine equipment
Product Details
| Brand Name | YAJIE | Place of Origin | China | |
| Model Number | YX |
Product Description

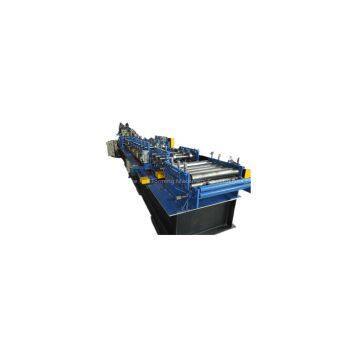

C purlin roll forming machine
Applicable profile
Size: 15mm *40mm*80mm (according to customers' requests) Thickness: 1.5mm-2.5mm We can also design machine according to customers' needs.
Working flow
De-coiler---guiding -----flatting --- roll forming ----positioning, punching and cutting----collection
Technical parameters
1. Working piece thickness: 1.5mm-3.0mm
2. Forming speed: 8-10m/min
4. Total motor power: About 20.5KW
5. Forming station: About 14 sets
6. Cutting: Hydraulic cutting 5.5KW
7. Control: PLC control cut to length, length error 1mm
8. Shaft Material and diameter: ￠ 75mm, material is 45# forge steel
9. Way of driving: Chain driving
10. Material of forming roller: Gcr15, thermal refining
11. Material of cutting blade: Cr12 mould steel with quenched treatment 58o C-62o C
12. Warranty: 1 year from date of shippment
Main strengths of machine
1. Simple operation
2. Fast speed
3. High production rate
