Home > Products > Plastic Film Blowing Machine > Professional High Speed LDPE Film Blowing Machine 40-70kg/h

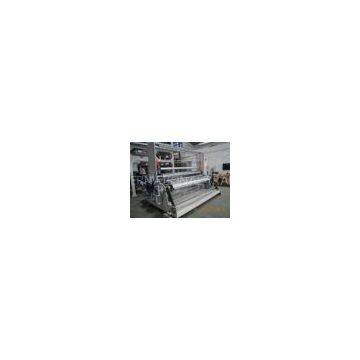

Professional High Speed LDPE Film Blowing Machine 40-70kg/h
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Speed Mini Pe Plastic Film Blowing Machine 11kw 22kw 30-50kg/h
-
48kw Automatic Pe Bubble Film Making Machine With 1000-1500mm Width
-
380V HDPE Bubble Plastic Film Blowing Machine With Single Rewinder CE
-
50HZ 300W Single Head Auger Filling Machine 1500-3000 Bags / Hour
-
Two Screw Double Layer Plastic Film Blowing Machine With Rotary Die Head
-
Automatic Vertical Manual Rotary Auger Filling Machine For Beauty Salon / Lab
Product Details
| Place of Origin | China | |
| Model Number | HR-LD45/55/65 |
Product Description
Certification:CE
Quick Detail:
CE Certificate
380V? 50Hz
HERO BRAND
600-1500mm width
LDPE film
40-70kg/h
1.The?Line?applies?extrusion?system?made?of?special?steel,?high?precision?die?head,(optional?reversing?die?head)automatic?precise?temperature?controller,?contact-free?solid-state?relay?and?other?famous?national?brand?electronic?parts.
2.The?machine?applies?speed?adjustment?of?frequency?conversing?to?stabilize?the?running?and?increase?the?productivity?with?low?energy?and?good?reliability
3.With?moment?motor,?the?tension?of?the?winder?works?evenly?so?as?to?produce?flat?films?with?good?appearance
4.The?machine?is?applicable?for?the?raw?material?of?PP?to?constantly?blow?films?with?varees?specifications
body
Description:
|
Model |
HR-LD45 |
HR-LD55 |
HR-LD65 |
|
Material suitable |
LDPE |
LDPE |
LDPE |
|
Film width(mm) |
600 |
1000 |
1200 |
|
Film thickness(mm) |
0.02-0.08 |
0.02-0.08 |
0.02-0.08 |
|
Screw diameter(mm) |
F45 |
F55 |
F65 |
|
Screw L/D ratio |
30:1 |
30:1 |
30:1 |
|
Screw &Barrel material |
38CrMoAlA |
38CrMoAlA |
38CrMoAlA |
|
Die diameter(mm) |
LDPEF160 |
LDPEF220 |
LDPEF280 |
|
Die type |
rotating |
rotating |
rotating |
|
Thermo control zone |
5 |
6 |
6 |
|
Barrel cooling fan(W) |
250 |
250 |
250 |
|
Main motor power(KW) |
15 |
22 |
30 |
|
Length of take-up roller(mm) |
700 |
1100 |
1300 |
|
Take-up motor power(KW) |
1.5 |
1.5 |
1.5 |
|
Take-up speed(M/min) |
10-80 |
10-80 |
10-80 |
|
Output (KG/h) |
50kg/h |
80kg/h |
100kg/h |
|
Dimensions (mm) |
2500*4000*4000 |
3500*5000*6000 |
3500*5000*6800 |
|
Weight (KG) |
4400kg |
5800kg |
8000kg |
|
Max dia of winding roll(mm) |
700 |
700 |
700 |
|
Rewinder type |
Back to back,auto |
Back to back,auto |
Back to back,au |
