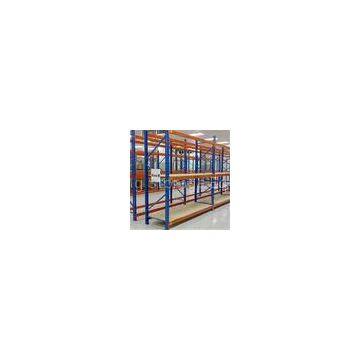

Orange Dismountable Medium Duty Racking , 4 Layer Teardrop Pallet Rack

Classification:

Medium/Light Duty Goods Shelf

Use:

Warehouse storage rack

Supermarket store

Office display

Exhibition hall

Feature:

Save space

Store various small goods with light/medium duty loads

Structure:

Dismountable structure

Loading capacity:

100-500 Kg per level

Quality:

Strong and stable

Size:

Customized size

Materials:

High quality steel Q235

Material thickness:

0.8-2.5mm

Upright:

Omega Section

Pitch holes:

pitch 75mm square hole with good safety

Beams:

Box-shape beams or Slide-structure stair-type beam

Levels:

2~8 levels, customized

Welding:

Good welding

Safety Pin:

L shape locking pins

Colors:

Standard Blue&Orange or customized

HS Code

73089000

● Maximum Height(Upright/Pillar):

2,000mm - 8,000 mm?

● Max Width/Length(Beam):

Up to 3,900 mm?

● Max Depth(Upright frame):

Up to 1,500 mm

● Max Weight:

100kg - 800 kg / layer?

● Mobility:

The height of each beam can be adjusted ?by 75mm of pitch freely.

● Surface finish:

Powder coating which is characterized by surface-smoothly, antirust,anti-corrosive, non-toxic.

● Material:

High quality steel, such as Q235B etc.

● Color:

Blue/Orange/Gray/others
