Home > Products > Single Stage Gas Regulator > Oxygen Fuel Gas Single Stage High Pressure Gas Regulator For Gas Supply Control

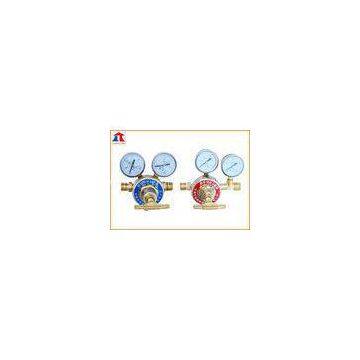

Oxygen Fuel Gas Single Stage High Pressure Gas Regulator For Gas Supply Control
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Oxygen Double Stage Gas Regulator For Gas Supply Control Of Cutting Machine
-
G02 Balanced Pressure Acetylene Gas Cutting Nozzle For CNC Cutting Equipment
-
G03 LPG Gas Cutting Nozzles , Propylene Propane Cutting Torch Tips
-
II Type Cable Pulley Cutting Machine Parts , Fix Gas Tube Of Flame Cutting Machines
-
Aluminum Moving Object Cutting Machine Parts For Portable CNC Cutting Machine Beam
-
Portable Cutting Machine Parts Plasma Cutting Torch Holder Anti - collision
Product Details
| Brand Name | Longteng | Place of Origin | China | |
| Model Number | LT-YQJ-11,LT-EQJ-24 |
Product Description
Certification:CE,ISO
Oxygen Fuel Gas Single Stage High Pressure Gas Regulator For Gas Supply Control
1) Quick Detail:
1. Single stage high pressure gas regulator
2. Use for gas supply control of CNC cutting machine
3. Material:brass
2) Description:
1> Structural Features
1. Single stage pressure reducing structure
2. Use the high quality forging brass for upper cover and its body structure
3. With the sintered bronze filter screen at the inlet gas pipe.
4. For the lining in side of the upper cover, use the high quality stainless steel to make much smoother for pressure reducing.
3) Applications:
Gas regulator is a adjusted device which can reduce the high pressure gas to low pressure gas, can maintain the pressure.
1. A big-flow gas distributing system.
2. Designed for the pressure regulating system of the cylinder centralized gas supply device.
3. A high- precision pressure regulating device.
4. The input pressure is no more than 15Mpa and the output pressure is between 0.01 and 1.6Mpa.
5. When both the output pressure and the output flow change, it can stabilize the output pressure and work continuously for a long time.
6. It uses brass strainer inside, which can effectively filter gas impurities. The strainer is easy to be replaced.
4) Specifications:
|
Model Number |
LT-YQJ-11,LT-EQJ-24 |
|
Brand Name |
Longteng,OEM |
|
Place of Origin |
Wuxi, China (Mainland) |
|
Certification |
CE,ISO |
|
Loading Port |
FOB Shangha |
|
Type |
Single stage |
|
Outlet pressure |
0.01-1.6(Mpa) |
|
Input Pressure |
0-15(Mpa) |
|
Rated Flow |
100(m3/h) |
|
Fluid available |
Oxygen |
|
Material |
Brass |
|
Using temperature range |
-20-50(℃) |
|
Model No. |
Gas service |
Inlet connection |
Outlet connection |
Inlet pressure (Mpa) |
Outlet pressure(Mpa) |
Outlet flowmeter(M3/h) |
|
YQJ-11 |
oxygen/carbon dioxde |
G3/4 |
G3/4 |
15 |
0.01~1.6 |
100 |
|
EQJ-24 |
acetylene/propane/natural gas |
G3/4-LH |
G3/4-LH |
2.5 |
0.01~0.15 |
40 |
5) Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 18 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable
