Home > Products > Three Phase Energy Meter > Polyphase Residential Three Phase Energy Meter Four Wire 3 x 230V / 400V AC

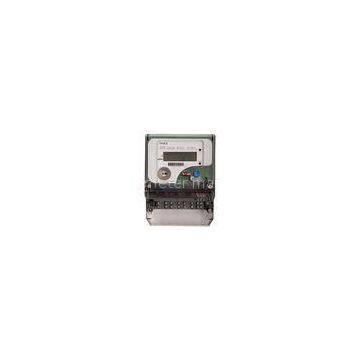

Polyphase Residential Three Phase Energy Meter Four Wire 3 x 230V / 400V AC
- T/T L/C D/P D/A
- 7 days
You May Like
-
Single Phase Two wires Din Rail KWH Meter for Residential applications
-
Electric multirate DIN RAIL KWH meter , Smart watt hour meter 5A / 10A
-
Class 1 or 2 High accuracy Smart Energy Meters with remote communication modules
-
Three Phase Four Wires Smart Energy Meters with remote communication modules
-
Square Class 1 or 2 Impulse Electromechanical Energy Meter with Single Phase
-
Remote Reading Domestic Wireless Energy Meter 1 Phase with GPRS Modules
Product Details
| Brand Name | Xili | Place of Origin | China | |
| Model Number | XLE34 Type 100 |
Product Description
Certification:IEC, MID
?
?
Polyphase Residential Three Phase Energy Meter Four Wire 3 x 230V / 400V AC
?
?
Quick Detail:
?
?
?
Description:
?
The XLE34 Type100 is a poly-phase residential meter for single rate billing for either Symmetrical (BS, UTE) or asymmetrical (DIN) connection standards. Proven measurement technology and top quality manufacturing processes guarantee accuracy and reliability for its entire lifespan, so the meter is supplied closed and no inspection is necessary.
?
?
Applications:
?
Three-phase Four-wire, direct connected energy meter for residential applications.
?
?
Specifications:
?
Type | Three-phase Four-wire, direct connected energy meter |
Reference voltage (Un) | 3 x 230/400 Volts AC (other voltages available on request) |
Reference Frequency (Fr) | 50 Hz or 60 Hz |
Extended Operating voltage range | 80%-115% Un |
Basic Current (Ib) | 5A, 10A |
Maximum Current (Imax) | Up to 100A |
Short-circuit ≤ 10 ms | 30 Imax |
Measuring Accuracy | Class 1 |
Starting current | 0.4% Ib |
Burden | ≤10VA,1.8W |
Protective Class | Class II (double insulated) IEC 62052-11 |
Burden | ≤10VA,1.8W |
Operation temperature rage | -20℃～+55℃ |
Storage temperature rage | -25℃～+60℃ |
Life span | 10 years |
Reference standard | IEC 62052-11; IEC 62053-21 |
Dimension | 186.25x126x56mm |
?
Competitive Advantage:
Features
User Benefits
