Home > Products > Friction Screw Press > Extruding Forging Screw Press / Hydraulic Stable J53-160ton Hot Forging Press

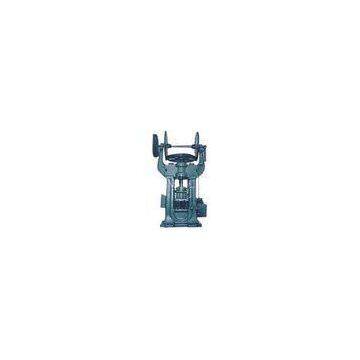

Extruding Forging Screw Press / Hydraulic Stable J53-160ton Hot Forging Press
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
J53-300ton Pneumatic Forging Screw Press For Edge Cutting With Low Noise
-
J53-400ton Low Noise Friction Screw Press With 10000 KN For Bending
-
Large Energy Forging Screw Press , Hydraulic Hot Forging Press For Non-Ferrous Metals
-
Hydraulic J53-1000ton Friction Screw Press For Ferrous Metals
-
1600 KN J53-1600ton Friction Screw Press , Rigid Forging Screw Press For Ferrous Metals
-
J53-2500ton Pneumatic Friction Screw Press With Low Noise For Extruding
Product Details
| Brand Name | Hongduan | Place of Origin | China | |
| Model Number | J53-160ton |
Product Description
Certification:ISO9001;CE
Extruding Forging Screw Press /? Hydraulic Stable J53-160ton Hot Forging Press
Quick?Detail:
1.simple?and?stable?structure;
2.large?energy;?
3.low?noise;
4.long?lifetime;
5.safety?and?easy?to?operate?and?maintenance.
Nominal?force?from?160ton?to?12500ton
Description:
J53?series?double?disc?friction?screw?presses?are?widely?used?in?the?forging,?extruding,?edge?cutting,?
bending?and?adjusting?of?non-ferrous?and?ferrous?metals.
this?series?machine?has?following?advantages:?
?1.simple?and?stable?structure;
2.large?energy;?
3.low?noise;
4.long?lifetime;
5.safety?and?easy?to?operate?and?maintenance.
Nominal?force?from?160ton?to?12500ton
Applications:?
J53?series?double?disc?friction?screw?presses?are?widely?used?in?the?forging,?extruding,?edge?cutting,?
bending?and?adjusting?of?non-ferrous?and?ferrous?metals.
Specifications:?
J53 Series Double Disc Friction? Screw Press
| Main?parameters | Unit | JA53-63 | J53-100B | J53-160C | JA53-400D | J53-630D | J53-1000C | |
| Nominal?force | KN | 630 | 1000 | 1600 | 4000 | 6300 | 10000 | |
| Energy | KJ | 2.25 | 5 | 10 | 40 | 80 | 160 | |
|
Max?load (central?loading) |
kN | 1000 | 1600 | 2500 | 6300 | 10000 | 16000 | |
| Ram?stroke | mm | 200 | 310 | 360 | 500 | 600 | 700 | |
| No.?of?stroke | min-1 | 35 | 19 | 17 | 14 | 11 | 10 | |
| Guide?rail?distance | mm | 230 | 386 | 460 | 650 | 715 | 1000 | |
| Ram | front/back | mm | 275 | 390 | 450 | 636 | 760 | 1190 |
| dimension | left/right | mm | 227 | 280 | 445 | 636 | 700 | 800 |
| ???Dimention?of | front/back | mm | 315 | 500 | 560 | 820 | 920 | 1200 |
| ???working?table | left/right | mm | 270 | 450 | 510 | 730 | 820 | 1000 |
| Height?of?bolster | mm | 80 | 100 | - | 120 | 180 | 200 | |
| Minimum?die?height | mm | 235 | 220 | 260 | 400 | 470 | 500 | |
| Ejecting?method | ? | rigid | rigid | rigid | pneumatic | pneumatic | pneumatic | |
| Ejecting?stroke | ? | 50 | 80 | 50 | 100 | 100 | 100 | |
| ? | front/back | mm | 1010 | 1393 | 2000 | 3200 | 4600 | 5355 |
| ?Overall?size | left/right | mm | 1141 | 1884 | 2800 | 360 |
