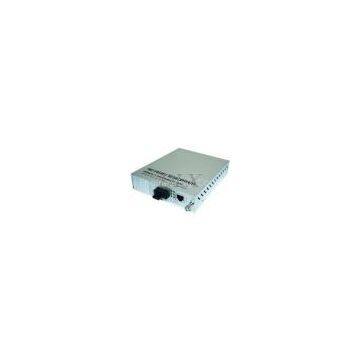

DLX-850G series Gigabit Ethernet Fiber Media Converter

DLX-850G series 1000M Ethernet Fiber Media Converter is a kind of stand-alone type media converter that includes one main board of fiber converter and different kinds shell and can be centralized control by chassis. It is used to translate the data between 10Base-T twisted-pair and 10Base-FL optical cable or between 100Base-TX twisted-pair and 100Base-FX optical cable or between 1000Base-T twisted-pair and 1000Base-FX optical cable. And this equipment can extend the transmission distance from 100m to 100KM via the quick Ethernet Fiber Optical. It adapts to the connection of optical fiber of backbone and is a kind 1000M Ethernet Fiber Media Converter of fine quality and low price. It is primarily used in broadband WAN established by data network operators as Telecast, Netcom, Unicom, or industrial broadband industrial private network of government, finance, oil, police, force, railway, power, transportation, education, etc

Product Feature

●     Compatible with 1000Base-FX standard and can connect with similar kinds products

●     IEEE802.1Q or ISL are optional for the connection of backbone

●     Supports SPANNING TREE structure and allow wrong date of network

●     Working rate is 1000Mbps and also support 10Mbps and100 Mbps.

●     Detect and control the operational states of electrical port and optical port of the near end and the far end via interface of management

●     Supports remote port management function, optical link-loss alarm and remote diagnostic functions

●     Auto-negotiate and Auto-cross to NIC/HUB and MDI/MDI-X

●     Supply one RJ-45 electrical port

●     Advanced optical and electronic integration mechanism can supports good optic characteristic and electrical characteristic, and can ensure the high quality and excellent reliability of date transmit

●     Main board adapts multi layer structure of circuit board, possess excellent reliability and good anti-jamming feature

●     Average working time of fault free is more than 50,000hours,meet the standard of telecommunication operation

Technologies reference

●     Operating temperature: 0℃-50℃

●     Storage temperature: -40℃-70℃

●     Environment humidity: 5-90%(non-condensing)

●     Power parameters: 100V~260V AC (Inner power supply) or 5V DC (External power supply)

●     Dimension:

Inner power supply: 140mm x 110mm x 28mm

External power supply: 94mm x 68mm x 25mm
