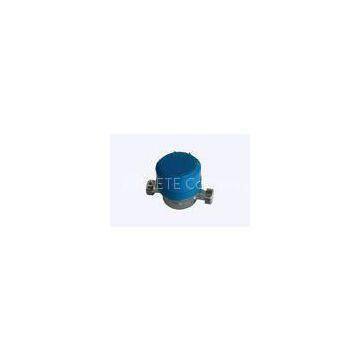

Dry Type Vane Wheel Single Jet Water Meter for household , 1.6 Mpa

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Ningbo Wasser		Place of Origin	China
Model Number	LXC-15D

Product Description

Delivery Time:20 to 60 days depending order quantity
Certification:CE,ISO9001,MID

?
?
Dry Type Vane Wheel? Single Jet Water Meter for household , 1.6 Mpa
?
?
Quick Detail:
?
Single jet, dry dial;
Magnetic drive, magnet resistance;
Optimum accuracy and performance at all times;
Accurate measurement, easy and long term clear reading etc;
?
Description:
?
LXC-15D Single Jet Dry Type Vane Wheel Water Meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline.
Feature:
?

Dry-dial ,magnetic drive,resistance to exterior magnet interferenceSingle-jetSelected high quality materials for steady & reliable characteristicVacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term serviceMeasuring accuracy conform to ISO 4064 MID StandardInner or outer adjusting device for optionSmall in size and light in weight

?
Working condition:
?

Water temperature: lower than 50 for cold water meterWorking pressure: lower than 1.6 MPa

?
Applications:
?
Measuring the volume of cold potable water passing through the pipeline.
Water Temperature: Cold water meter ≤ 40℃, Hot water meter ≤90℃
Water Pressure:≤ 1.6Mpa(16bar)
?
Specifications:
?

Main Technical Data
Type	LXC-15D
Size(mm)	15
Q4(m3/h)	3.125
Q3(m3/h)	2.5
Q2(m3/h)	0.05
Q1(m3/h)	0.0312
Min Reading(m3)	0.0001
Max Reading(m3)	99999

Dimensions and Weight
Type	LXC-15D
Size(mm)	15
Length(mm)	110
Width(mm)	73
Height(mm)	72
Connecting Thread(D)	G3/4-B
Weight(kg)	0.48

?
Competitive Advantage:
?

1. dry type, single jet, cold water meter
2. brass body
3. ISO standard, MID certification
