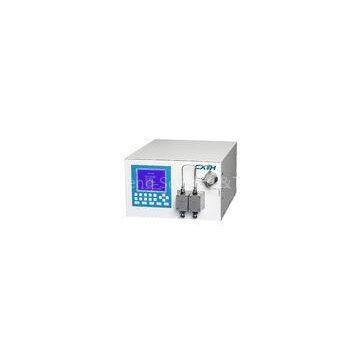

Preparative HPLC System HPLC Instrumentation with 500ml HPLC Pump

Preparative HPLC System HPLC Instrumentation with 500ml HPLC Pump

Description:

LC6000 preparative high performance liquid chromatography system can produce purifications of going to kg scale.

Applications:

Natural extracts synthetic mixtureschiral compounds etc

It can provide the highest chromatographic performance by combing with our dynamic axial compression columns.

Configuration List

Note:

100ml/min,250ml/min,500ml/min,1000ml/min

Technical parameter:

Infusion Working Mode: Dual piston reciprocating pump

Pump Head: 100 mL or 250 mL Stainless steel pump head

Max Working Pressure: 20 MPa

Flow Rate Range: ( 0 ~ 100 ) mL / min or ( 0 ~ 250 ) mL / min

Flow Accuracy: ± 1.5 %

Flow Repeatability: RSD ≤ 1.0 %

Working Mode: Isocratic or Gradient Mode

Wavelength Range: (190 - 700 ) nm

Light Source: D2 lamp (standard configuration), Tungsten lamp (optional available)

Wavelength accuracy: ± 2nm,

Wavelength repeatability: 0.4 nm

Detection Range: ( 0~2 ) AU

Baseline Noise: 3 X 10-5 AU

Baseline Drift: 1 X 10-3 AU/h

Competitive Advantage:

The Characteristics of LC3000-PCD Post-Column

Derivatization Analytical System

Optional single or double reaction core, which can be heated reaction at room temperature the reaction of two reactions;

Optional one, two or more derivatizing agent pumps

Reactor core front panel display of the set temperature of the reaction and the actual temperature; Derivative front panel display of each reagent pump flow rate, pressure and pressure limit;

Competitive Advantage:

Preparative HPLC pump is double piston design

Developed server engine

Exported check valve and sealing ring

Providing high quality products for the customer
