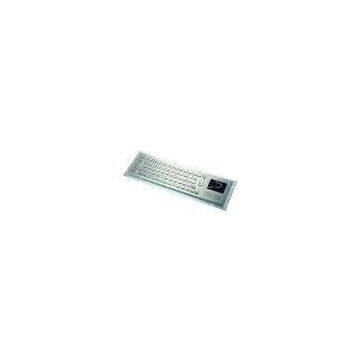

Rugged 67 Keys Industrial Metal Keyboard With Touchpad , Indestructible Medical Keyboard
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
107 Keys Public Flat Water Proof Industrial Metal Keyboard With Trackball And Number Pad
-
Waterproof metal pinpad for ATM and kiosk with interface USB,PS/2 and RS232
-
16 keys Vandalproof Metal Pinpad for ATM and Kiosk with Interface USB,PS/2 and RS232
-
Die-casting Metal Pinpad for Payphone and Kiosk with Interface USB,PS/2 and RS232
-
20keys Metal Pinpad for ATM and Kiosk with Interface USB,PS/2 and RS232
-
Corners Vandalproof Metal pinpad for ATM and kiosk with interface USB,PS/2 and RS232
Product Details
| Brand Name | DPK | Place of Origin | China | |
| Model Number | DPK-3069 |
Product Description
Certification:CE,ROHS, FCC
Rugged 67 Keys Industrial Metal Keyboard With Touchpad , Indestructible Medical Keyboard
Quick detail
1) Dimension ?415.5 mm x 134 mm (Front Panel)
2) 67 keys compact format IP65 vandal-proof stainless steel
3) with touch pad
4) Power supply voltage: 5V DC.
5) Communication interface: PS2, USB or RS232 are all available.
No. Item Specification
1 Model No. ?DPK-3069?
2 Dimension ?415.5 mm x 134 mm (Front Panel)
3 Description
67 keys compact format IP65 vandal-proof stainless steel numeric keypad, which is suitable for access controller, decoder optional
4 Main Feature
key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off. Or protrusive engraving available.?
With firm tactile key feel, short travel switches, with unique double over-travel protection.?
Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
Easily mounting into enclosure or panel, and is provided with PS/2, or USB, RS232, connection output cables that plug directly into the host computer for normal keypad operations.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX
COMMUNICATION PARAMETER
USB, PS2 or RS232 are all available.?
67 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. Any keys can be re-defined per customers\' requirements.
5 Mechanical Data
Switching material: Gold-on-Gold.?
Actuation Force: 2.00.1N (pressure point).?
Key Travel: 0.45mm.?
Lettering: laser engraving, or raised letters.?
Front panel: brushed stainless steel.?
Actuator/keys materials: stainless steel.?
G.W. 1.5KGs.
6 Electrical Data
Power supply voltage: 5V DC.
Power Consumption: Under 300mW for operation, under 200mW for non-operation.?
Electrical lifetime: > 5 years.?
EMC:EN55022(B).?
Communication interface: PS2, USB or RS232 are all available.
Environmental Adatability
Operating temperature:-20°C to +60°C.?
Storage temperature: -30°C to +70°C.?
Operating RH: 30-90%.?
Atmospheric pressure: 60-106Kpa.
7 Reliability
RoHS Compliant, CE and FCC?
Protection Level: IP65(front panel)?
Vandal resistant IK10?
Key Lifespan >5 million actuations .?
MTBF >20000h.?
MTTR <30min.
