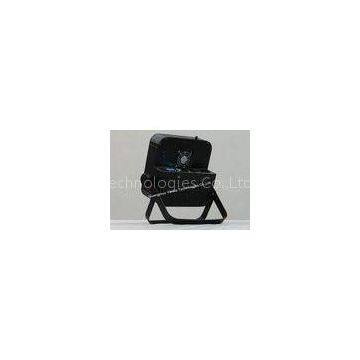

Bar DMX Wireless LED Par Stage Lights , 90W Professional Stage Lighting

Brand Name	Yenlite		Place of Origin	China
Model Number	YL-PAR-9-10FC

Delivery Time:1-14 Days
Certification:CE, RoHS

Bar DMX Wireless LED Par Stage Lights , Professional Stage Lighting

Quick Detail:

9 LED 4IN1 10W

Built-in Li-ion battery for 3 -12h of operation

2.4GHz Wireless DMX512, Master/Slave, Auto Run,?Sound Active

CE,?RoHS

Specifications:

Model Name:	9 LED 4IN1 10W Battery Powered Wireless DMX LED Par Light
Model No.:	YL-PAR-9-10FC
Working Voltage:	100-240V AC 50-60Hz
Light Source:	9 LED 4IN1 10W
Max. Power:	90 W
Beam Angle:	25 or 40 degree
Battery:	Built-in Li-ion battery for 3 -12h of operation
DMX Channels:	4 or 6 Channels
Control mode:	2.4GHz Wireless DMX512, Master/Slave, Auto Run,? Sound Active
Certification	CE,?RoHS
Dimensions:	24cm X 22cm X11cm
Net Weight::	4.2Kg

Description:

Full color dimming: 255 grade brightness tunning, sound activation Full color Jumping change: Red, Green, Blue and White color jumping in turns, 255 grade speed control, sound activation 15 color jumping change: 255 grade speed control, sound activation Multicolor graduating change: 255 grade speed control, sound activation Multicolor strobe: 7 colors strobe in turns, 255 grade speed control, sound activation. Auto Run, Built-in programme circulation Master/Slave: Multiple units linked, slave changes with master synchronizingly. DMX dimming: Different units are assigned their own DMX address, their outputs are changing with the data of the DMX controller.

Operation Panel

1-LCD Display? 2-Operation Button? 3-Wireless DMX Indicator? 4-Sound Activation Indicator? 5-DMX Signal Indicator? 6-MIC

7-DMX Socket? 8-Antenna? 9-Battery Charging Indicator? 10-Power Out? 11-Power In

Button Description

MODE:Working Mode Switch

SETUP:LCD Cursor Moving Key, Flashing Position is the parameter to be revised

UP:Data Up

DOWN:Data Down

Function Setup

Built-in Function Setup

Press SETUP key to switch among all sub-function key, speed, sound button, etc. Cursor flashing position is the parameter to be revised. Press UP or DOWN to adjust the data. It can be master unit.

For example: LCD displays\"4.FADE S010 A:N\"

4.FADE: NO.4 function, Fade

S010: Speed value 10

A:N: Sound Activation closed

AUTO RUN?

Auto Run the combination function of all sub-functions, it can be the master unit,

set the Sound Activation parameter to be \"N\" to close the Sound Activation Mode

of the sub-function.

DMX Address Setup:

Address Range: 1-512, Press UP to setup address upward and DOWN to setup address downward. There are two DMX channels for your choices:

DMX 4CH & DMX 6CH

DMX 4CH Mode:

????????????????????? CH1:0-255 Red Dimming Range

????????????????????? CH2:0-255 Green Dimming Range

????????????????????? CH3:0-255 Blue Dimming Range

CH4:0-255 White Dimming Range

DMX 6CH Mode:

????????????????????? CH1:0-255 Red Dimming Range

????????????????????? CH2:0-255 Green Dimming Range

????????????????????? CH3:0-255 Blue Dimming Range

CH4:0-255 White Dimming Range

????????????????????? CH5:R, G, B, W General Dimming

CH6:Strobe Speed

Slave Mode

Choose Slave Mode, Synchronizing with Master Unit.

Wireless ID Setup ?

Press SETUP, UP OR DOWN at present mode to display current ID, press again to setup new ID, ID value will be added 1 more by pressing one time, ID indicator color will change according one by one.

Working Status:

L
