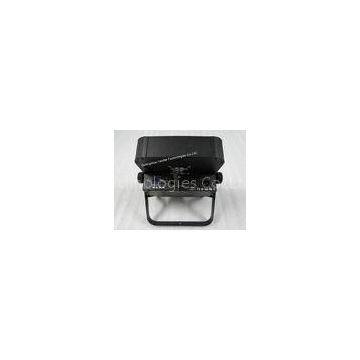

DMX LED Par Stage Lights For Party / Show Stage Lighting , RoHS / CE

Brand Name	Yenlite		Place of Origin	China
Model Number	YL-PAR-9-3TC

Delivery Time:1-14 Days
Certification:CE, RoHS

?DMX LED Par Stage Lights For Party / Show Stage Lighting , RoHS / CE

Quick Detail:

9 LED 3IN1 3W

Built-in Li-ion battery for 4 -12h of operation

2.4GHz Wireless DMX512, Master/Slave, Auto Run,?
Sound Active

CE,?RoHS

Specifications:

Model Name:	9 LED 3IN1 3W Battery Powered Wireless DMX LED Par Light
Model No.:	YL-PAR-9-3TC
Working Voltage:	100-240V AC 50-60Hz
Light Source:	9 LED 3IN1 3W
Max. Power:	90 W
Beam Angle:	25 or 40 degree
Battery:	Built-in Li-ion battery for 4 -12h of operation
DMX Channels:	3 or 5 Channels
Control mode:	2.4GHz Wireless DMX512, Master/Slave, Auto Run,Sound Active
Certification	CE,?RoHS
Dimensions:	24cm X 22cm X11cm
Net Weight::	4.2Kg

Description:

Tricolor dimming: 255 grade brightness tunning, sound activation Tricolor Jumping change: Red, Green and Blue color jumping in turns, 255 grade speed control, sound activation 7 color jumping change: 255 grade speed control, sound activation Multicolor graduating change: 255 grade speed control, sound activation Multicolor strobe: 7 colors strobe in turns, 255 grade speed control, sound activation. Auto Run, Built-in programme circulation Master/Slave: Multiple units linked, slave changes with master synchronizingly. DMX dimming: Different units are assigned their own DMX address, their outputs are changing with the data of the DMX controller.

Operation Panel

1-LCD Display? 2-Operation Button? 3-Wireless DMX Indicator? 4-Sound Activation Indicator? 5-DMX Signal Indicator? 6-MIC

7-DMX Socket? 8-Antenna? 9-Battery Charging Indicator? 10-Power Out? 11-Power In

Button Description

MODE:Working Mode Switch

SETUP:LCD Cursor Moving Key, Flashing Position is the parameter to be revised

UP:Data Up

DOWN:Data Down

Function Setup

Built-in Function Setup

Press SETUP key to switch among all sub-function key, speed, sound button, etc. Cursor flashing position is the parameter to be revised. Press UP or DOWN to adjust the data. It can be master unit.

For example: LCD displays\"4.FADE S010 A:N\"

4.FADE: NO.4 function, Fade

S010: Speed value 10

A:N: Sound Activation closed

AUTO RUN?

Auto Run the combination function of all sub-functions, it can be the master unit,

set the Sound Activation parameter to be \"N\" to close the Sound Activation Mode

of the sub-function.

DMX Address Setup:

Address Range: 1-512, Press UP to setup address upward and DOWN to setup address downward. There are two DMX channels for your choices:

DMX 3CH & DMX 5CH

DMX 3CH Mode:

????????????????????? CH1:0-255 Red Dimming Range

????????????????????? CH2:0-255 Green Dimming Range

????????????????????? CH3:0-255 Blue Dimming Range

DMX 5CH Mode:

????????????????????? CH1:0-255 Red Dimming Range

????????????????????? CH2:0-255 Green Dimming Range

????????????????????? CH3:0-255 Blue Dimming Range

????????????????????? CH4:R, G, B, W General Dimming

CH5:Strobe Speed

Slave Mode

Choose Slave Mode, Synchronizing with Master unit.

Wireless ID Setup

Press SETUP, UP OR DOWN at present mode to display current ID, press again to setup new ID, ID value will be added 1 more by pressing one time, ID indicator color will change according one by one.

Working Status:

LED constant light: Showing current ID, no DMX or wireless signal RED LED flash: Transmitting
