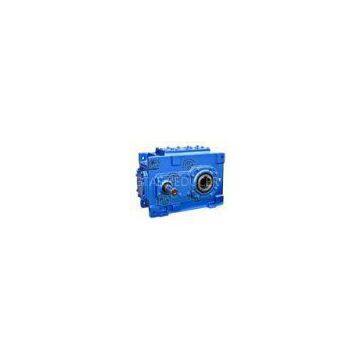

foot mounted helical gear reducer for conveyor and mining machine

Quick Details

· ? ? ? ? Gearing Arrangement:?Helical

·???????? Output Torque:?450000 N.m

·???????? Rated Power:?1.1-5100KW

·???????? Input Speed:?750-1500 rpm

·???????? Output Speed:?1.67-1200RPM

·???????? Place of Origin:?Zhejiang, China (Mainland)

·???????? Model Number:?H1SH3-H4SH26

·???????? Brand Name:?HENGTAI

·???????? Color:?According to customer

·???????? Ratio:?1.25-450

·???????? Mounting position:?foot mounted

·???????? Material for box:?cast iron

·???????? Packing:?Strong wooden cases for exporting

·???????? Output shaft: Solid or?hollow output shaft

·???????? Accessories: cooling system, lubrication system

·???????? Output shaft diameter:?30-420MM

Descriptions:

H.H series helical gear reducer are especially compact helical and helical-bevel gear units. H.H series

helical gear unit reducer covers a torque range of 2000-450000 N.m. Parallel shaft design of H.H series

helical gear reducer offers you a great deal of freedom in system design and requires remarkably little

space. Application range for H.H series helical gear reducer: e.g. in materials handling, transporting

heavy loads, mixing, crane drives and shredders. A version, based on this series, with extended bearing

distance and reinforced output shaft, is also available.

Your benefits:

1. Extremely robust gear unit housing

2. Reduced costs and weight due to high power density and finely stepped sizes

3. Effective cooling systems

4. CCW and CW versions may be implemented in a single gear unit version

5. Flexible mounting capability

6. Efficient project planning tools including 2D and 3D dimension drawing generators

7. Short delivery times for standard versions and spare parts

Specification:

H1??? i=1.25-5.6

H1SH3, H1SH5, H1SH7, H1SH9, H1SH11, H1SH13, H1SH15, H1SH17, H1SH19

H2??? i=6.3-28

H2SH4, H2SH5, H2SH6, H2SH7, H2SH8, H2SH9, H2SH10, H2SH11, H2SH12, H2SH13, H2SH14,

H2SH15, H2SH16, H2SH17, H2SH18, H2SH19, H2SH20, H2SH21, H2SH22, H2SH23, H2SH24, H2SH25,

H2SH26

???? ??H3??? i=25-112

H3SH4, H3SH5, H3SH6, H3SH7, H3SH8, H3SH9, H3SH10, H3SH11, H3SH12, H3SH13, H3SH14, H3SH15,

H3SH16, H3SH17, H3SH18, H3SH19, H3SH20, H3SH21, H3SH22, H3SH23, H3SH24, H3SH25, H3SH26

H4??? i=100-450

H4SH5, H4SH6, H4SH7, H4SH8, H4SH9, H4SH10, H4SH11, H4SH12, H4SH13, H4SH14, H4SH15, H4SH16,

H4SH17, H4SH18, H34H19, H4SH20, H4SH21, H4SH22, H4SH23, H4SH24, H4SH25, H4SH26

Applications:

Bucket elevator drives

Separator drives

Water screw drives

Conveyor drives

Dryer section drives

Maintenance:

After 300-hour operation, please change the oil, and flush the gear unit with suitable detergents.

Pls do not mix the mineral oil and synthetic oil.

Pls check the oil level in regular time.

The cause for breakdown and settlement of reducer:
