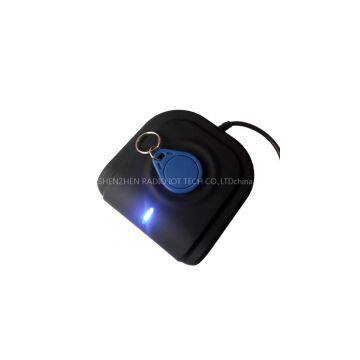

Contactless smart rfid reader/writer-multi-protocol supported, USB/RS232 port
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | RIOT | Place of Origin | China | |
| Model Number | IOT5302W-U |
Product Description
Key Features:
Adopts ARM Cortex M3 chipset
Available with 64kb Flash memory and 20kb RAM
Compliant with ISO1443A,B, ISO15693 standard
With 2 SAM sockets compatible with ISO7816 protocol(option)
Available with contactless CPU cards operation
Read/write NTAG203/205/213/215 NFC cards/tags
Multiple communication port for options
Good reading range with stable function
Indication status showed by buzzer and Bio-LED light
SDK, API and testing demo is providable
Technical Parameters:
Frequency 13.56Mhz
Baudrate 9600~115200 bits/s( adjustable, default 9600）
Reading range > 50-100mm (depends on tags and antenna size）
Protocol： ISO/IEC14443AISO/IEC 14443BISO/IEC 15693
Card types： (contactless)Mifare One S50; Mifare Ultralight;
Mifare OneS70，MifarePro，NTAG203/205/213/215AT88RF020; 66CL160S;
SR176; SRIX4K，I-code 2;TI RFID Tag-it HF-I, EM4135, EM4034
Contact cards： ISO7816 standard, 2 SAM socket（options）
Communication port RS232，USB（option）
Power DC 5V or from USB port
Current <150mA
Working temp -10℃ ~ +70℃
Storage temp -20℃ ~ +80℃
Indication Bio-LED light and buzzer
Dimension 100*100*27mm
