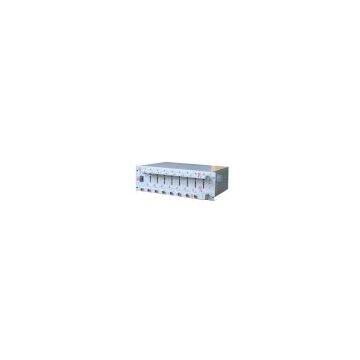

5V 3A 8 channel tester for cylinder battery square battery
- T/T L/C D/P D/A
- 7 days
You May Like
-
Semi-Automatic Die Cutter for pouch cell electrode sheet GN-180
-
Sealing Machine for Cylindrical Cases (Optional: 26650, 18650, CR123, AA, AAA etc) - MSK-510M series
-
li ion battery testing device--5V3A,5V6A 5V10A 10V3A 10V20A 10V30A 50V50A 110V110A etc
-
li ion battery vacuum glove box for lithium ion battery producion
-
Forming Machine for Pouch Cell Aluminum-Laminated Films - GN-120
-
Automatic aluminum laminated film forming machine for li ion battery
Product Details
| Brand Name | GELON | Place of Origin | China | |
| Model Number | 5V 3A |
Product Description
lithium ion battery testing machine--- mobile phone battery packing line testing machine
1.Comprehensive Test:
A.Battery type:Li-ion,Ni-H,Ni-Cd
B.Voltage type:2.4V,3.6V,4.8V,6.0V, 7.2V.
C.General testing items:Charging test,discharging test,protection test.
D.Optional testing item: identifier code, identifier resistance.
E. Normal voltage 3.7V is same as 3.6V, identifier code is for Motorola mobile battery.
F. Testing time is about 0.8-1.5s according to different items.
2. Capacity Test:
A.Battery type:Li-ion,Ni-H,Ni-Cd
B.Voltage type:2.4V,3.6V,4.8V,6.0V, 7.2V.
C.Testing item:Total capacity,plateau capacity,overcharge protecting voltage,overdischarge protecting voltage,short circuit and over current protection.
D. Testing time is about 1-3hours according to different types battery.
3.Identifier code:
Identifier the code of the mobile battery,64+1024.
Technical index
1.Current testing accuracy:±5mA
2.Voltage testing accuracy: ± l0mV
3Capacity testing accuracy: ± 2%
4.Resistance testing accuracy: ± 10%
Service environment
1.Voltage input:220VAC ± 10% 0: 5A
2.Working temperature:00C-350C
3.Storage temperature:-20"C-600C
4.Relative temperature:20%-80%
