Home > Products > Outdoor LED Billboard > 1R1G1B P 10 Large Outdoor LED Billboard Monopole With MBI5024 Driving IC

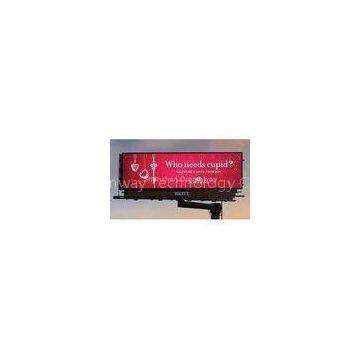

1R1G1B P 10 Large Outdoor LED Billboard Monopole With MBI5024 Driving IC
- T/T L/C D/P D/A
- 7 days
You May Like
-
DIP346 P10 High Brightness Outdoor LED Billboard With 1/4 Scan , Color Led Display
-
Commercial 10mm Pixel Pitch Outdoor LED Billboard With MBI5024 IC Epistar LED
-
P16 Square Outdoor Roadside Billboard Advertising LED Display , 256mm 256mm
-
P 10 Outdoor Advertising LED Display Screen 1R1G1B With IP65 Waterproof , 10000 Dots
-
Super Bright P5 Indoor Full Color LED Display Video Wall Advertising 1R1G1B For Conference Room
-
P10 1R1G1B Outdoor OPTO / SILAN LED LED Matrix Displays Module With MBI5024 IC
Product Details
| Brand Name | Dreamway | Place of Origin | China | |
| Model Number | P10 |
Product Description
Certification:CE,ROHS
1R1G1B P 10 Big Outdoor LED Billboard with MBI5024 Driving IC
Quick Detail:
1. 1R1G1B;
2. 10,000 dots/sq.m;
3. 1/4 scan constant current;
4. Over 7500 CD/sq.m;
5. HUB and PCB are separated;
6. Steel water resistance cabinet.
Detail Description:
OPTO/SILAN LED, long using life;
High definition and brightness, nice display effect;
More than 800 HZ refresh rate, no blink.
Application:
It is used for advertising on road side in general.
Specifications:
Model | PH10 |
LED Composition | 1R1G1B |
LED Type | DIP346 |
Pixel | 10,000 dots/sq.m |
LED Module Pixel | W 16 × H 16 |
LED Module Size | W 160 × H 160 mm |
Normal Cabinet Size | W 960 × H 960 mm |
Cabinet Color | Black |
Cabinet Material | Steel waterproof cabinet |
Drive Mode | 1/4 scan constant current |
Brightness | ≥7500 CD/sq.m |
Refresh Rate | ≥800Hz |
Out of Control Dot Rate | <0.0001 |
Earth Leakage Current | <2mA |
MTBF | >5,000 hours |
LED Life Time | >100,000 hours |
Power Supply | 110V/60HZ and 220V/50HZ interchangeable |
Humidity | 10%~90% |
Operation Temperature | -20~+60℃ |
Operation System | Win2000 / XP / Vista |
?
Large Outdoor LED Billboard, Outdoor LED Billboard for Commercial Use, Full Color Outdoor LED Billboard
