DIY GSM Alarm System For House/Office Security

Hot Sale!!! Wireless GSM alarm system for fair and security protection with multi-language(G1)

Our Company of Shenzhen Patrol Hawk Technology Co., Ltd is a professional GSM alarm system manufacturer, established in July of 2003, which is the first

and the most professional GSM alarm supplier in China. we have been specialized in designing, manufacturing and selling of GSMsecurity alarm products,  having

the key technology of independent intellectual property rights. We also had a professional R & D, production and sales team with years of experience. Our products

passed CE&RoHS Certificated.


Description



The alarm system adopts SMS data transmission and voice platform of GSM network to send  control command and receive alarm message remotely.

The gsm alarm system can be armed according to user's requirement, when a signal is detected by sensors, the sensors will send  alarm signal to alarm

host immediately. Then the alarm host will send  alarm SMS to preset   mobile numbers, and meanwhile dials its present telephone number /mobile phone

numbers automatically,. In addition, users can dial the number in the alarm host to remote control the host, such as arm, disarm, etc.

Main  Functions



1, Whether send SMS or not when arm/disarm;

2, Arm/disarm remotely by phone keypad;

3, Automatically send SMS to 3 preset phone numbers while alarming;

4, Automatically call 3 preset phone numbers and start on-site listen in while alarming;

5, Real-time report the alarm zone remotely by SMS and voice reminding;

6, With user-friendly voice reminder while operating the alarm host;

7, Support two-way communications;

8, Built-in dedicated emergency alarm zone and fire alarm zone;

9, Automatically report while the AC power failed or recovered and switch to backup

10, battery when the external power failure;

11, Buil-in 12 wireless alarm zones ( including 1 emergency zone and 1fire alarm zone), and

12, 2 wired zones (with anti-cut function);


Specification



1, Wireless frequency: 315MHz/433MHz;

2, GSM frequency: 900/1800MHz(standard), 850/1900MHz (optional)

3, Alarm response time: ≤8s (GSM signal in normal)

4, Power requirements: AC 220V 50Hz/60Hz

    Working consumption: < 0.6W

    Backup battery: DC7.4V/850MA
    Backup battery working hours: ≥10 hours

5, Working condition

    temperature: -20~+60 degree   humidity: ≤95% (non-condensation)

6, Size: 150mm(L)×100mm(W)×16mm(H)
7, Record time: 10s

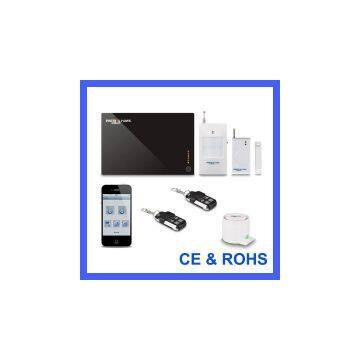

Package List for one small kit


Security alarm panel x1

Wireless door/window megnetic contact x1

Wireless remote control x2

Wireless keypad x1

Wireless PIR motion detector x1

Siren x1

Power adapter x1

English manual x1


Packing List for one large kit



1x GSM alarm panel G1

4x Wireless PIR motion detectors

4x Wireless door/window magnetic sensor

4x Wireless remote controllers

1x Wireless gas detector

1x Wireless smoke detector

1x Siren

1x Power adapter

1x English manual

1x New & nice giftbox.

Our Products:


Here is our series of products of PATROL HAWK: 3G video monitoring system, GSM/GPRS/MMS alarm system, GSM power facility alarm system, GSM Home/commerical alarm system, GSM, industy alarm system, GSM data acquisition alarm system, Telephone line alarm system, GSM monitoring center software and various kinds of detector, etc. Most of our products ceretificated by CE & RoHS. So our customers could rest assure the quality. Meanwhile, the products in our company have the exchange period of 3 months and warrantly period of 18months.
