Anodized Aluminum Alloy Amplifier Tensile Load Cell With High Precision 0.05kg - 50 Kg
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Moisture Proof Miniature Strain Gauge Load Cell / Compact Single Load Cell for Tension Measurement
-
High Precision Double Ended Shear Beam Load Cell for Silo / Hopper / Truck scales 10 Ton - 50 Ton
-
Digital Weighing Module Force Transducer Load Cell , Cylindrical Low Profile Resistance Sensor for S
-
1 Ton - 16T High Accuracy Force Transducer Load Cell for Tanks and Level Meter , Cylinder Type
-
Aluminum Strain Gauge Load Cell Pin , Compression and Tension Mini Load Cells for Industrial 500 kg
-
Column Compression and Tension Force Transducer Load Cell IP68 for Weighing Scale 5 kg - 200 kg
Product Details
| Brand Name | Lascaux | Place of Origin | China | |
| Model Number | TR |
Product Description
Anodized Aluminum Alloy Amplifier Tensile Load Cell With High Precision 0.05kg - 50 Kg
Quick Detail:
Model: TR
Features:
Capacities(kg):0.05kg……50kg Resistance strain measurement methods High comprehensive precision, high stability Compact structure, durable in use Delicate structure, easy to install The rated output is 1.5mv/V(standard) Be matched with amplifiers, 0-10v or 4-20mA are available Anodized aluminum alloy On-line tension measurement accuratelyDescription:

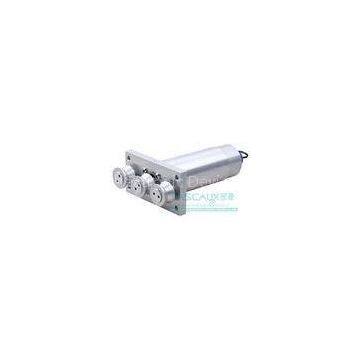

TR series are a kind of tension sensor, it is made of aluminum steel, and its surface must be anodized. The type adopt resistance strain measurement methods, high accuracy rotational, high stability, its structure is very compact, durable in use, because of its appearance, it is also called three roller type force sensor, it is mainly suitable for the measurement of yarn, fiber, wires and familiar produces.
TR series is available in the capacities 0.05kg to 50kg, very compact, light, delicate, and easy setup via an instrumented, single load cell can be matched with weighing indicator, converting what you want to, because the load cell itself output is mill volt(MV), it has to need an amplifier switch voltage or current.
TR series is suitable for on-line tension measurement, yarn, fiber, wires and similar products.
Applications:
Be suitable for on-line tension measurement, yarn, fiber, wires and familiar produces.
Specifications:
|
Rated Load |
kg |
0.05,0.1,0.2,0.5,1,2,5,10,20,50 |
|
Rated Output |
mV/V |
1.5 |
|
Zero Balance |
%R.O. |
±1 |
|
Comprehensive Error |
%R.O. |
±0.3 |
|
Non-linearity |
%R.O. |
±0.3 |
|
Hysteresis |
%R.O. |
±0.1 |
|
Repeatability |
%R.O. |
±0.1 |
|
Compensated temp. Range |
?℃ |
-10...+40 |
|
Operating temp. Range |
?℃ |
-20...+70 |
|
Temp.effect/10℃ on span |
%R.O./10℃ |
±0.03 |
|
Temp.effect/10℃ on zero |
%R.O./10℃ |
±0.03 |
|
Recommended excitation voltage |
VDC |
5-12 |
|
Maximum excitation voltage |
VDC |
15 |
|
Input impedance |
Ω |
406±10 |
|
Output impedance |
Ω |
350±3 |
|
Insulation resistance |
MΩ |
>3000 |
|
Safe overload |
?%R.C. |
150 |
|
Ultimate overload |
?%R.C. |
300? |
|
Material |
Aluminum |
|
|
Degree of protection |
IP65 |
|
|
Cable lengths |
m |
3 |
|
Connection |
Excitation |
red:＋ ? black |
