Column Compression and Tension Force Transducer Load Cell IP68 for Weighing Scale 5 kg - 200 kg
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
500 Ton - 2000 Ton Low Profile Load Cell Transducers Weighing Sensor to Measure Roll Force
-
100 Kg 200 Kg 500 kg Load Cell Weighing Sensor High Accuracy for Electronic Truck Scale
-
500 kg 5 Ton Aluminum Alloy Force Transducer Load Cell for Testing / Weighing System
-
Multi Axis Load Cell / Tension Compression Load Cell Resistive Sensor for Hopper / Platform Scales
-
Low Profile Disk Compression Load Cell Strain Gauge Sensor for Truck / Rail / Ground Scales 50 Ton
-
Small Compression Tension Force Transducer Load Cell High Precision 20 Kg 50 Kg 500 kg
Product Details
| Brand Name | Lascaux | Place of Origin | China | |
| Model Number | C420 |
Product Description

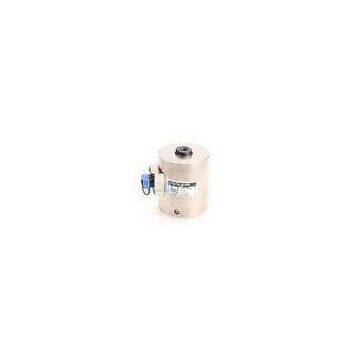

Column Compression and Tension Force Transducer Load Cell IP68 for Weighing Scale 5 kg - 200 kg
Quick Detail:
Model: C420
Features:
Capacities( t): 2 to 200kg Compact structure, easy to install Low profile, column designing Compression and Tension are available Alloy steel or Stainless steel material Degree of protection reaches to IP68 For Static and Dynamic ApplicationsDescription:
C420 is a kind of Force Transducer, it belongs to column designing, the dimension is very small, very light, It is made of Alloy steel, the degree of protection reaches to IP68, which has the function of waterproof and moisture-proof,
C420 sensor is available in the capacities 2kg to 200kg, its structure is very compact, easy mounting, static and dynamic applications are available, its compact size makes the cell ideal for a wide range of applications including testing or weighing systems.
C420 load cell can be used single, single load cell can be matched with weighing indicator, converting what you want to, because the load cell itself output is mill volt(MV), it has to need an amplifier switch voltage or current. It is suitable for a wide range of applications including testing or weighing systems.
Applications:
Be suitable for a wide range of applications including testing or weighing systems
Specifications:
|
Rated Load |
kg |
2, 5, 10, 25, 50, 100, 200 |
|
Rated Output |
mV/V |
2 |
|
Zero Balance |
%R.O. |
±1 |
|
Comprehensive Error |
%R.O. |
±0.05 |
|
Non-linearity |
%R.O. |
±0.03 |
|
Hysteresis |
%R.O. |
±0.03 |
|
Repeatability |
%R.O. |
±0.03 |
|
Compensated temp. Range |
?℃ |
-10~+40 |
|
Operating temp. Range |
℃ |
-20~+70 |
|
Temp.effect/10℃ on span |
%R.O./10 ℃ |
±0.03 |
|
Temp.effect/10℃ on zero |
%R.O./10 ℃ |
±0.03 |
|
Recommended excitation voltage |
VDC |
5-10 |
|
Maximum excitation voltage |
VDC |
15 |
|
Input impedance |
Ω |
400±10 |
|
Output impedance |
Ω |
350±3 |
|
Insulation resistance |
MΩ |
>3000 |
|
Safe overload |
%R.C. |
150 |
|
Ultimate overload |
%R.C. |
200? |
|
Material |
Alloy steel |
|
|
Degree of protection |
IP68 |
|
|
Cable lengths |
m |
3m |
|
Connection |
Excitation |
red:＋???? ? black:– |
|
Signal |
Green:＋? white:– |
