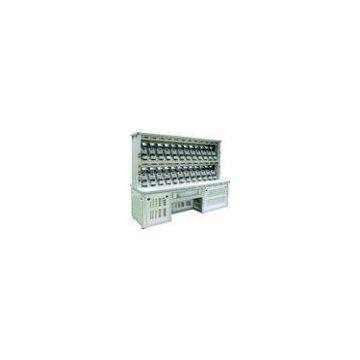

Single Phase Electric Energy Meter Calibration Equipment Tester , 48 Meter Position

Brand Name	KRE		Place of Origin	China
Model Number	KE8102

Delivery Time:1-2 month

Single Phase Electric Energy Meter Calibration Equipment Tester , 48 Meter Position

Name: Energy meter test equipment, electric meter test bench Phase: Single Phase Accuracy Class:? 0.05% Meter position: 12 / 24 / 48 / 60 position Power: Electronic Usage: Auto Electric meter test and calibration Voltage Output: 24V – 300V Current Output:? 1mA – 120A Operating Temperature: -10°C -- +40°C Supporting the auto test of two current sample meters

Single Phase Energy Meter Testing Equipment, 24 - 60 Meter Position

This system is used for the test of various single phase electric and mechanical meter, multi-function meter, PLC meter, multi-rate meter and prepayment meter.

Highlight: Integrated/separated aluminum alloy structure, light and reliable, flexible choices Meter positions can be chosen from 12-60 Perfect alarming protective function, auto protection of the short circuit of voltage, the open circuit of current, and overload. Double current channel, supporting the auto test of two current sample meters The open circuit test of neutral voltage (optional) Auto mark locking increases the efficiency of test Supporting bar code input, which increase the efficiency of input Full automatic, semi automatic and manual operation available Simultaneous test of the energy meters with same specification, different constants and different classes. Adopt multi-serial port system, realizing the parallel communication of computer and the tested meters (optional) Forward and reverse active energy/ forward and reverse reactive energy error test Creeping and starting test Standard deviation, 24 hour variation test Influencing quantity test of voltage, frequency, harmonic Calibration and verification of constant Register indicating value, register combination error test Powerful computer management system, easy and user-friendly Perfect database management makes the storage, searching, and viewing of the data possible, and the data can be converted and exported in other forms ? ? Main Specification:

	KE8102-12	KE8102-24	KE8102-48	KE8102-60
Number of meter position	12	24	48	60
Accuracy	±0.05%
Voltage output
Output range (P-N)	24V – 300V
Output power of voltage	250VA	500VA	1000VA	1500VA
Resolution	Better than ± 0.01%
Stability	Better than ± 0.02% / 150s
Load regulation rate	Better than ± 0.01%
Distortion factor	Better than ?± 0.3% (linear resistance load)
Harmonics output	2nd -21st free programmable
Current output
Output range	1mA – 120A (or customized, Max. 230A)	1mA – 120A
Output power of current	350VA	750VA	1500VA	2000VA
Resolution	Better than ± 0.01%
Stability	Better than ± 0.02% / 150s
Load regulation rate	Better than ± 0.01%
Distortion factor
