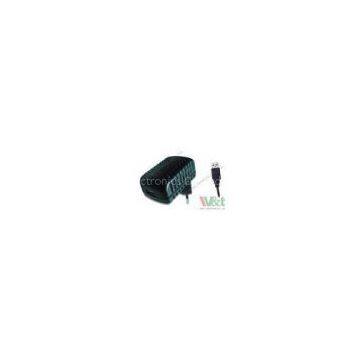

Wall Mounted Tablet PC AC DC USB Travel Charger 5V 2.1A , 9V 1.5A
- T/T L/C D/P D/A
- 7 days
You May Like
-
AC DC USB Travel Charger Cell Phone Charger Adapter With Argentina Plug , KC FCC TUV
-
4W 4.2V 800MA - 900MA AC DC USB Travel Charger With EN / IEC 60335 Standard
-
5V 1A AC DC USB Travel Charger Mini USB Intercom / Phone Charger
-
Universal Iphone / Mobile Phone AC DC USB Travel Charger 86V - 265VAC
-
6V 900MA / 5V 1A Retractable Micro USB Charger For Digital Camera
-
5W Universal AC DC USB Travel Charger For Tester Machine 86V - 265V
Product Details
| Brand Name | W&T | Place of Origin | China | |
| Model Number | W&T-AD12W-D |
Product Description
Certification:PSE UL CE GS EK FCC CB BS
USB AC/DC Charger, USB travel charger, 5V 2.1A, 9V 1.5A? wall Adapter , for Tablet PC and other equipment
Quick Detail:
12W W&T USB Series, AC/DC Charger, Input voltage: 100V-240V AC, 50/60Hz Range voltage: 86V-265V AC, 47-63Hz Output power: 6~12W Output voltage: DC 3.00V ~ 24.0V Output current range: 300MA~2000MA Output voltage Ripple & Noise: Output voltage 1% MAX Efficiency: 70% MIn M.T.B.F: 50000H Plug in: UK, US, EU, AUS, JP and KC Plug??High efficiency power, High Reliability (Ultra low no-load /standby power consumption)
Ultrasonic Lamination
Natural Cooling
Meets \"ENERGY STAR\" program requirement
Over voltage protection
Over load & short circuit protection
100% full load burn-in test
Energy Efficiency: Efficiency level V
Meet CEC, Reach?and MEPS standard
Rohs compliant
Safety:
PSE UL CUL CE GS?KC FCC TUV ?CB BS?
Application:
It’s?suitable?for?an?extremely?wide?range?of?applications,?including:
?? mobile phone, GPS, interphone, walkie talkie, intercom
??Li-lon/ Ni-mh/ Ni-hydrogen/ Lead-acid battery
??Bluetooth speaker
??electric torch, flashlight
??MP3,MP4,MP5,
??Digital camera
??Electric toy and portable medical products charge
??Electric tools and consumer electronics products charge
??Electric cars and communication terminal equipment product charge
??Consumption electronic products
??Tester machine and industrial machine
??Toy and lighting products
??Digital product and radio device
??Medical and exercise device or equipment
Specification:?
|
INPUT |
Voltage |
90-264VAC universal full range |
|||||||
|
Frequency |
47-63Hz |
||||||||
|
Current |
＜0.5A@100V AC input, full load condition |
||||||||
|
Inrush Current |
＜40A@115V , ＜60A@230V AC input.Cold start at 25℃ ambient |
||||||||
|
Leakage Current |
＜0.5A@ 264V AC input |
||||||||
|
OUTPUT |
PART NO. |
AD12WBX42 |
AD12WXB05 |
AD12WBX06 |
|||||
|
Voltage |
0-4.2V |
0-5V |
0-6.0V |
||||||
|
Max Load |
0-2.1A |
0-2.1A |
0-2.0A |
||||||
|
Output Tolerance |
±5% |
±5% |
±5% |
||||||
|
Ripple Noise(MAX) |
50mV |
50mV |
70mV |
||||||
|
Efficiency(MIN) |
≥65% |
≥65% |
≥70% |
||||||
|
Output MAX |
10W |
12W |
12W |
