Auto Reverse Camera / Car Reverse Camera With Sensor , Waterproof IP68
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wide Angle Car Reversing Camera Lense 2.1mm 120 / 150 Degrees , CE / FCC
-
Cars With Reversing Camera Installed 170 Degrees Via Mount Holder / Universal Bracket
-
Car Auto Rear View Camera / Car Reversing Camera Shutter Speed 1 / 60Sec , 1.0Vp-p ,75 ohm
-
Dust-Proof Car Reversing Camera IP68 1 / 100000 sec , Trapezoid Line For Vehicles
-
IR Car Reversing Camera Color CMOS 4PIN Connector , Butterfly Installation
-
Small Size Car Reversing Camera 420 TVl 0.2Lux / F1.2 DC 12V , Wide Viewing Angle
Product Details
Brand Name | QOHO | Place of Origin | China | |
Model Number | QH-MC303IR |
Product Description
Certification:CE,FCC

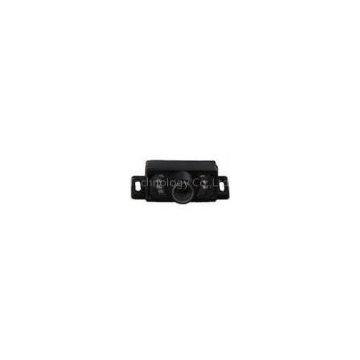

Auto Reverse Camera / Car Reverse Camera With Sensor , Waterproof IP68
Description:
? MINI IR LED CMOS car reverse camera;
? 6 LED Night Vision Color Car Reversing Camera;
? Includes 6 IR LED, support night vision;
? CMOS imaging sensor;
? Wide viewing angle;
? Easy to install, you can install the monitor via mount holder or universal bracket
? With Trapezoid aid line to help reversing car;
? Applicable to variety of Vehicles: car, truck, RV, mini-van etc.
? Waterproof (IP68) & dust-proof Mini Car Camera.
? 170 degrees wide angle;
? Night-vision.
Product Technical parameters:
Image device: |
1/4 \"OV Color CMOS |
TV system: |
PAL/NTSC |
Effective pixels: |
PAL=704 x 576, NTSC=712 x 486 |
Sensing area: |
5.78 x 4.19, 4.69 x 3.54mm |
Resolution: |
420TV lines |
Waterproof: |
IP68 |
Minimum illumination: |
0 Lux with 6 IR LEDs |
Lens angle: |
120° |
Distance label function |
(optional) |
Power supply: |
12V DC |
Video output: |
4PIN connector, detachable socket |
Scanning system: |
?2:1 interlace |
Synchronization system: |
internal |
Horizontal synchronization frequency: |
15.625/15.734KHz |
Vertical synchronization frequency: |
50/60Hz |
Gamma consumption: |
0.45 |
AGC: |
Auto |
S/N ratio: |
better than 48dB |
White balance: |
Auto |
Electronic shutter: |
1/60 to 1/15,000 seconds |
BLC: |
Auto |
Current consumption: |
200mA |
Operating temperature: |
? -10°C to 46°C, 95% RH (maximum) |
Storage temperature: |
?-30°C to 60°C, 95% RH (maximum) |
Lens: |
2.8mm / f = 2.0 |
Advantage:
IR waterproof IP68 & night vision car reversing camera
