Home > Products > Samarium Cobalt Magnet > SmCo5 Samarium Cobalt Magnet , Rare Earth Magnet For Camera

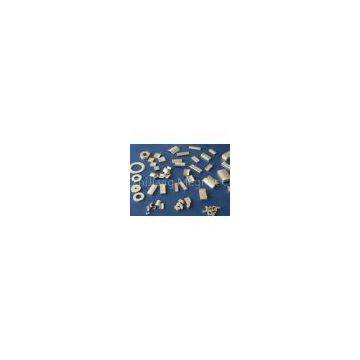

SmCo5 Samarium Cobalt Magnet , Rare Earth Magnet For Camera
- T/T L/C D/P D/A
- 7 days
You May Like
-
Rare Earth Samarium Cobalt Magnet , Sm2Co17 Ring Magnet Magnetic
-
Block Samarium Cobalt Magnet For DC Brushless Motors / Engine
-
Rare Earth Samarium Cobalt Magnet , Disc Magnet For Sensors
-
Sintering Samarium Cobalt Magnet , Tile Magnet For Stepper Motor
-
32MGOe Samarium Cobalt Magnet / Sintering Fan Magnet For Rotors
-
Plastic Tube Samarium Cobalt Magnet Customized Of Rare Earth
Product Details
| Brand Name | ZJMAG | Place of Origin | China | |
Product Description
Certification:ISO 9001: 2008
? SmCo5 Samarium Cobalt Magnet , Rare Earth Magnet For Camera
Quick Detail:
1.Density - 8.3 g/ cm3 (SmCo5), 8.4 g/ cm3 (Sm2Co17)
2.Manufacturing process - sintering
3.Various shapes - blocks, bars, discs, rings, arc, segments, sectors, fan shape, cylinders, etc.
4.High magnetic performance - up to about 32MGOe.
Samarium Cobalt Rare Earth magnets (also known as SmCo magnets) are another type of permanent magnet. A big advantage of SmCo magnets is that they can operate at temperatures up to 300 degrees Centigrade. SmCo magnets are widely used in applications in which high operating temperature and high corrosion and oxidation resistance are crucial.
|
Physical Properties of SmCo Magnet |
||
|
Material |
Sm1Co5 |
Sm2Co17 |
|
Curie Temperature (℃) |
700-750 |
800-850 |
|
Max. Operating Temperature (℃) |
250 |
350 |
|
Hardness (Hv) |
450-500 |
500-600 |
|
Density (g/cm3) |
8.2-8.4 |
8.3-8.5 |
|
Temperature Coefficient of Br (%/℃) |
-0.05 |
-0.03 |
Applications:
Meters
Radar
Detectors
Engine
Camera
Magnetic switches
Sensors and transformers
Motors and Generators
Performance of Sintered Samarium Cobalt Magnets
|
Grade |
Residual Induction |
Coercive Force |
Intrinsic Coercive Force |
Maximum Energy Product |
Maximum Operating Temp |
Curie Temp |
? | ||
|
(Br) |
(Hc) |
(Hci) |
(Bhmax) |
(Tw) |
(Tc) |
? | |||
| ? | |||||||||
|
(G/mT) |
(Oe/kA/m) |
(kOe) min |
(kA/m) min |
(MGOe) |
(KJ/m3) |
(°C) |
(°C) |
? | |
|
Sm1Co5 |
? | ||||||||
|
SM16 |
8100/810 |
7800/620 |
15 |
1194 |
16 |
127 |
250 |
750 |
? |
|
SM18 |
8500/850 |
8300/660 |
15 |
1194 |
18 |
143 |
250 |
750 |
? |
|
SM20 |
9000/900 |
8500/676 |
15 |
1194 |
20 |
167 |
250 |
750 |
? |
|
SM22 |
9200/920 |
8900/710 |
