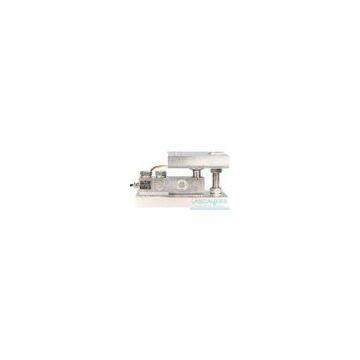

Compact Digital Weigh Module with Load Cell for Tanks / Silo 500 kg - 5 Ton

Compact Digital Weigh Module with Load Cell for Tanks / Silo 500 kg - 5 Ton

Quick Detail:

Model: FWC

Features:

Description:

FWC weigh module is a superior load cell mounting assembly that dramatically simplifies load cell installation, it adopts the high quality sensor element, its features are compact, don’t need to install other accessories, high stability, easy mounting, saving time, this design can install on the kinds of vessels easily, which can filling, batching, mixing conveniently.

FWC also provides an unparalleled degree of protection for load cell and maintains a permanent load cell safety system, reducing load cell damage and plant down-time.

This design is available in 500kg to 5000kg, the dimension and hole size are the same in the range of 500kg to 2000kg, 3000kg to 500kg is the same dimension, which is larger than small capacities, Each weigh module consists of three different module types, a Fixed-pin Module and a Semi-Floating Modules and some number of Full-Floating Modules.

A perfect solution to vessel weighing in diaries, chemical, bottling, and? food processing plants, which can be used on tanks, silos, and many other weighing vessels and applications, FWC module can be used more set together, each module needs a load cell, three or more can make up a set module. Many arrangements are possible to suit tanks with three or more legs in circular, square, or rectangular patterns, If the tanks has the four legs, the module must be consisted of two full-float, a fixed, a semi-float, the bottom plate is the same, besides the different capacities.

Applications:

The module can be used for hostile environments applications, batch weighing, silo hopper weighing, belt scale weighing, and other vessel weighing.

Competitive Advantage:

1. Easy mounting, compact structure

2. Unique structure, simplifies load cell installation on tanks, silo, and other weighing vessels

3. Three different module types: Fixed, Semi-float, Full-float.

4. Stay bolt, prevent the equipment upsetting

5. Suitable for load cell models SBC/SQB-SS

6. Alloy steel or stainless steel material is available

7. Reducing load cell damage and plant down-time

8. Provision for thermal expansion, contraction and lift-off due to winds or collision

9. Suitable for the humid and corrosion environment

Dimension:

Wiring code:

Installation:
