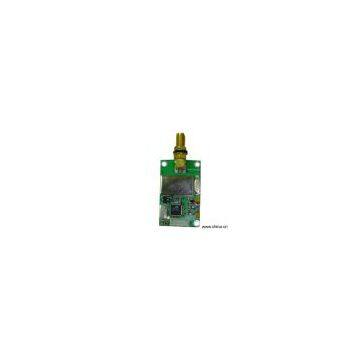

Sell Micro-Power Data RF Module

Model No.:S-J871
Product Origin:China
Brand Name:
Price Terms:FOB Shenzhen
Payment Terms:
Certification:
Description:Specifications: 1) Within the visual range, the reliable transmission distance can reach 800 (BER=103@9,600bps) 2) Carrier frequency: 428~434MHz, or customized to 460MHz or others 3) 16 channels, expandable for 32 channels according to customers' requirements 4) Effective speed: 1,200 / 2,400 / 4,800 / 9,600 / 19,200 / 38,400bps 5) Interface: TTL level UART, RS-232 / RS-485 6) Interface format: 8N1 / 8E1 / 8O1 or customized 7) Can receive and send, half-duplex communication transition last fleetly 8) Offering a transparent data interface, it is suitable for any standard or non-standard user protocols 9) Auto filtration of false data produced in the air, and able to transmit long data frames 10) Good reliability for long-time use, low failure rate, and suitable for both indoor and outdoor use 11) Low power consumption and sleep function power: a) Power: 100mW b) Receiving current: <10ma c) Transmitting current: <110ma d) Sleep current: <0.1mA 12) Power supply: a) TTL: 2.7-5.5V DC b) RS232/RS485: 4.5-5.5V DC 13) Saving power model: a) Awaken from hardware b) Awaken from COM port c) Awaken from air 14) Temperature: -20~+65°C (customized batch order for industrial level) 15) Dimensions: 44 x 27 x 8mm (antenna not included) 16) Attachable communication with model: S-J871 / S-J872 / S-J873 / S-J878
