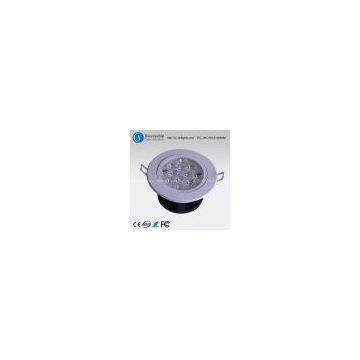

Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.  is a professional operation led concealed ceiling light of Chinese enterprises. The led concealed ceiling light can be adjusted according to the different needs and circumstances change light color, not only did not produce radiation and glare, and can protect eyesight, light color is more moderate. Its technical parameters are as follows:

Lamp body:  aluminium alloy

Diffusive lampshade:  light transmittance≥85%

light  source:  1W igh-power

Driver:  wide Input driver, EMC approved

Finish:  white/black

LED Model No.:  SC-CLC014W01-30/40/60

Rated power:  12W

Consume power:  14±0.5W

Input Voltage:  AC 100-240V

Output Voltage:  32-42V

Input current:  320mA±5%

Efficiency:  ≥85%

Cutout：Ф121±1mm

P.F:  ≥0.80

Lighting View Angle:  30°

Lighting CRI:  ≥70/≥80

Working Temp.:  -10℃~40℃ / R.H.≤85%

Storage Temp.:  -30~65℃

Life span:  25,000 HR

IP Rate:  IP20

If you are on led concealed ceiling light is interested, you can contact us for further discussion.
