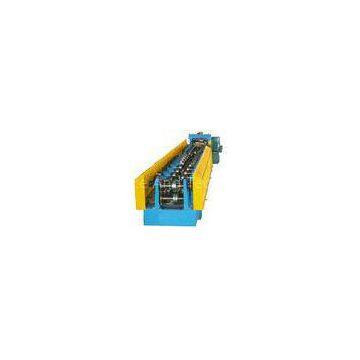

20 Stations and 75-300 Hydraulic C / Z Quick Interchangeable Purlin Roll Forming Machine
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Speed, 45# Forge Steel and 4 Post Shear Corrugated Roof Roll Forming Machine
-
7.5Kw Corrugated Roofing Roll Forming Machine with PLC Automatic Control Cabinet
-
Custom 45# Forge Steel and 18 Stations Corrugated Roof Rolling Forming Machine
-
Passive / Hydraul Single or Double Uncoiler Metal Corrugated Roof Roll Forming Machine
-
Customized Corrugate Roof Roll Forming Machine with PLC Automatic Control Cabinet
-
Automatic Metal Corrugated Roll Forming Machine, Hydraulic Unit with Cooler
Product Details
| Brand Name | YTSING | Place of Origin | China | |
| Model Number | YD-0235 |
Product Description
Certification:CE
20 Stations and 75-300 Hydraulic C / Z Quick Interchangeable Purlin Roll Forming Machine
| Specification | |
| Number of Stations | 20 sets |
| Thickness | 1.5-3.0mm |
| Main Power | 13.5KW |
| Shipment Packing | one 40FT container |
| Forming Speed | 15-18 mtr./min(Not include shear) |
| Machine Frame | H-BEAM Frame |
| Technical Data | |
| Productivity | C&Z channel as the drawing |
| Man Power Required | One operator with one assinstant |
| Set Up time | 15 mins |
| Working Hours per Day | 8 to 16 |
| Line Direction | Left to right while facing operator panel |
| Overall Machine Length Required | 12.6m |
| Approximate Machine Height | 1.5M |
| Complete Line Consist Of |
| Passive decoiler |
| Feeding&Leveling applicator |
| Roll forming |
| Hydraulic punching |
| Hydraulic shear |
| Output table |
We can also design rolling C-Z Purlin machine according to your specific profile drawing.
Layouts:
