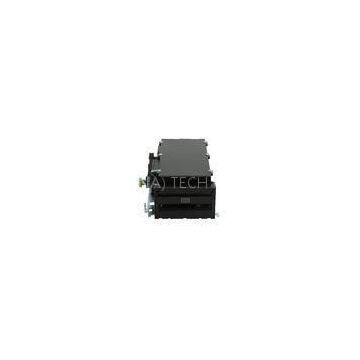

Motorized RS 232 Magnetic Stripe Card Reader , ISO7810 ID-1 EMV Smart Card Reader
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Tamper-Proof IC Motorized Card Reader With RS 232 / USB Interface
-
Motorized ATM Smart Card Reader , Magnetic Card Reader And Writer ISO
-
ATM Motorized Contact Smart Card Reader / Writer , SIM Card Reader ROHS
-
Motorized Smart Card Reader For CPU Card , Mifare S50 Card Reader
-
Automatically IC RS232 Dip Card Reader / ID Terminals Manual Card Reader DC 5Volt
-
Kiosk RFID Hybrid Dip Manual Card Reader , NCR ATM Parts DC 5V
Product Details
| Brand Name | CRT | Place of Origin | China | |
| Model Number | CRT-310N |
Product Description
Motorized RS 232 Magnetic Stripe Card Reader , ISO7810 ID-1 EMV Smart Card Reader
Description:
Motorized card reader CRT-310-N with below main features:
★?Three in one: RFID/IC card read/write, magnetic stripe card read only
Electric shutter,
★?Auto insert/eject card from the front,Insert and eject the card from both the front and the rear side
★?RS232 interface
★?DC12V ±5%
★?Installation dimension and bezel dimension is fully compatible with 3K7
★?Clearance of abnormal card
★?Fault tolerance processing is the same as some other brands
★?Small-size controllable electric shutter
★?Support warped card mechanism design
★?Power-fail protection
★?PSAM board for option
Applications:
Kiosk terminals
Payment systems
Traffic control systems
ATM
Quick Detail:
CRT-310N is motorized card reader equipment which is by the way of “Auto insert/eject card, 3 in one”.
Specifications:
|
Card standard |
Magnetic Card: ISO7810 ID-1,ISO7811 |
|
Life time |
Magnetic head: 600,000? passes IC card contact:300,000 passes Motor: 1,000,000 passes |
|
Communication |
RS232 interface |
|
Power supply |
DC12V±5% |
|
Current consumption |
Static Current: ＜150 mA Peak Current: <1500 mA |
|
Temperature/Humidity |
Operation:0~50℃/0 ~ 90%?RH(Non condensing) |
|
Dimension (LxWxH) |
96.5x167x51.5mm |
|
Weight |
Approx 530g |
Competitive Advantage:
Small-size controllable electric shutter
Support warped card mechanism design
Power-fail protection
Long life 1,000,000 times for transportation
Installation dimension and bezel dimension are compatible with 3K7
Fault tolerance processing
Support IAP online download
