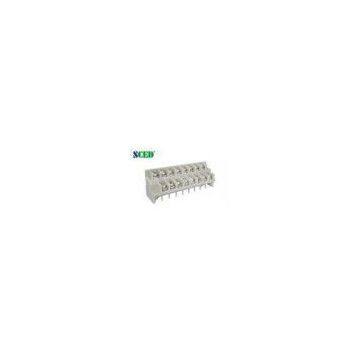

Double Levels Grey 7.62mm Barrier Terminal Block Connector 4*2P - 20*2P 300V
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Current Power Terminal Blocks , 20A Rail Mounted Terminal Blocks Pitch 9.50mm
-
600V 30A 12.00mm PCB Rail Mounted Terminal Blocks Connectors , Any Poles Available
-
Pitch 14.00mm Rail Mounted Barrier Terminal Block for PCB , Power Supply 600V 40A
-
600V 60A Rail Mounted Terminal Block , 14.00mm Electrical Terminal Blocks 4 - 20 AWG
-
Pitch 19.00mm High Current Rail Mounted Terminal Block Connectors 600V 80A
-
25.00mm 600V 101A PCB Rail Mounted Terminal Blocks With Right Angle Wire Inlet
Product Details
| Brand Name | SCED | Place of Origin | China | |
| Model Number | TB762-04-GY |
Product Description
Certification:UL, CE
Applications:
PCB,?Frequency?Converters,?Server?Site,?Switch,?Power?Supply,?Electric?Lighting,?Industry?Control,?
Automation,?Rail?Transportation,?Communication,?Electric?Power,?Security,?Medicine?Equipment,?
Military,?Elevator,?etc..
Competitive?Advantage:
1.?Stable?good?quality
2.?Competitive?price
3.?Quickly?response
4.?Full?range?products?for?selection
5.?Flexible?to?design?the?exact?part?per?customers’?demand
Double Levels Grey 7.62mm Barrier Terminal Block Connector 4*2P - 20*2P 300V
■Right?angle?wire?inlet;??□Vertical?wire?inlet;??□45?degree?wire?inlet
□Single?Level;??■Double?levels;??□Triple?levels
Standard?color:?Grey.?Other?colors?also?available,?please?refer?to?below?How?to?Order?and?select?
the?color?you?want.
Barrier?terminal?blocks,?Power?terminal?blocks,?Electrical?terminal?Blocks,?Terminal?blocks?suppliers
How?to?order:
Parameter?and?Drawing?Specifications:
|
UL?Technical?Data |
B??????????C??????????D |
|
Rated?Voltage?/?Current??????????????V/A |
???300?/?15??????????????????300?/?10????????????????????? |
|
Wire?Range???????????????????????AWG |
????14-22????????????????????14-22 |
|
IEC?Technical?Data |
|
|
Overvoltage?Category |
???????Ⅲ?????????Ⅲ?????????Ⅱ |
|
Contamination?Class |
?3??????????2??????????2 |
|
Rated?Voltage?/?Current??????????????V/A |
??250?/?24??????320?/?24???????400?/?24 |
|
Rated?Surge?Voltage?????????????????KV |
???????4??????????4???????????4 |
|
Rated?Connecting?Capacity???????????mm2 |
2.5 |
|
Material |
|
|
Insulation?Material?/?Inflammability?Class |
PBT?/?UL94,?V-0 |
|
Terminal?/?Plating |
Brass?/Tin?Plated |
|
Screw?/?Plating |
Steel?/?Nickel?Plated |
|
Other?Data |
|
|
PCB?Hole?Diameter??????????????????mm |
??????????????φ1.5 |
|
Stripping?Length????????????????????mm |
???????????????7-8 |
|
Screw?/?Torque????????????????????/?lbf.in |
????????????M?3/?5-7? |
