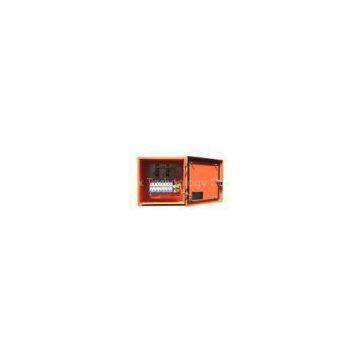

Waterproof 10A SPD DC Combiner Box TUV CE For Home Solar System

Waterproof 10A SPD DC Combiner Box TUV CE For Home Solar System

Residential use PV junction box? with SPD piezo resistor protection ,both positive and negative poles have fuse protection ,Residential use solar panel junction box,small home use PV Module combiner boxes 12 strings

Quick Detail:

It is mainly used for combine of strings in home solar systems, installed beside the distribution box indoors.

Key features:

1,String input adopts independent circuit breaker controls in each group, each group of strings has counter-attack diodes to prevent circulation.

2,Adopts Class II Overvoltage Protection Group to protect positive and negative terminals thus creating high security, reliability and excellent protection function.

3,Designed with small size and easy to install features

.Description:

The combiner box is a device that combines the output of multiple strings of PV modules for connection to the inverter. It is typically used in the larger commercial and utility scale PV power plants (greater than 50kW). The combiner box commonly houses the input overcurrent protection fuse assemblies for several strings (from as few as 2 strings to as many as 32), as well as the combined bus of those inputs into a single main output.

Normally PV combiner box may also house several other components for the site, such as a DC disconnect, surge protective devices and string monitoring hardware.

Solar Combiner Box (Steel/PC)
?

Key features:?

1.According to the function, it will have a standard combiner box (SAB) and an intelligent combiner box (SCB).

According to different working environment, it will have polycarbonate (PC) and steel made boxes .

2.We choose all materials strictly on quality first principle. All components comply with DIN and VDE standards, and all adhere to the highest quality standards.?
3.CE, TUV, CQC certified.?

4,Meet outdoor installation requirements, IP66 . With anti-UV, anti-acid, anti-alkali, moisture, mildew, rodents and so on functions.

5,All components meet rated voltage DC1000 V requirements.?

6.With fuses on Inputs, switches on outputs, and SPD in both poles.

7,Can monitor the current of each string, system voltage, status of circuit breaker and SPD. Can display and read the data on both local and background part. Can accurately identify the fault and its position(only applicable to SCB-II)

Applications:

The increasing demand of energy, the exhaustion of fossil fuels and the continuously serious pollution makes the effect of renewable energy of vital importance. As one source of renewable energy, solar energy is playing a more and more important role.

Solar can be transformed into electricity that can be used directly or fed into the grid according to national policy. Longmax Technology is focused on developing and offering technology and products for sustainable solar energy development. Our solar solutions are:

In the field of sustainable renewable photovoltaic energy, our core competencies products include:

Solar combiner boxes, AC/DC distribution cabinets/boxes, intelligent monitoring devices, portable AC/DC solar generators, multi-function power systems, environmental monitoring instruments, PV prevent reverse diodes and monitoring systems used in PV power plants.

Our history is full of firsts and our products are installed in a huge number of solar power plants all over China and the world. Till now, the total installed capacity of Longmax is over 2GW worldwide.

Our customers include entities and enterprises dedicated to the renewable energy field, solar power plants and agents/distributors around the world who are interested in the new PV industry.

Project: Grid-Connected Distributed Power Generation roof PV power plant , Sthans,Wuxi ,China

Project completion date:? under construction

Photos:

Project: Grid-Connected Distributed Power Generation systems, Small home use Project

Photos:

AC Power distribution cabinet for residential use.

Specifications:

In a large photovoltaic (PV) grid generation system, it is generally to install a DC combining device between the PV module and inverter in order to reduce the connection between PV module and inverter, facilitate maintenance and improve reliability. Our intelligent photovoltaic combiner box with SPD series are especially designed to meet the requirement, which can provide a solution for PV power generation system matching with photovoltaic inverter. According to the input volta
