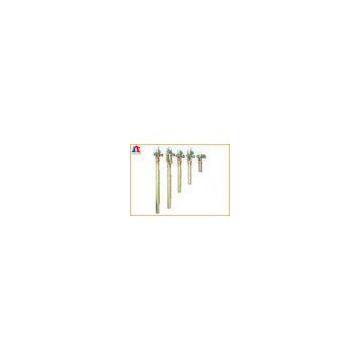

CNC Machine Straight Strip Oxy Fuel Cutting Torch , 254 KN Woking Pressure
Negotiable
/ Kilogram
1 Kilogram(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
190mm Spread-eagle Cutting Torch Holder Accessory For Flame Cutting Machine
-
190mm Spread-eagle Cutting Torch Holder accessory For Wire Cutting Machine
-
Connection Cutting Torch Holder For CNC Cutting Machine 230mm Length
-
Adjustable Hand Wheel CNC Machine Cutting Torch Holder 30mm / 32mm Diameter
-
High Precision Pressure Single Stage Oxygen Gas Regulator For Gas Cylinder Manifold
-
Brass Fuel Gas Single Stage Gas Regulator For CNC Flame Cutting Machine
Product Details
| Brand Name | Longteng | Place of Origin | China | |
| Model Number | LT-GJ-ZT |
Product Description
Certification:CE,ISO
CNC Machine Straight Strip Oxy Fuel Cutting Torch , 254?KN Woking Pressure
?
1) Quick Detail:
1. Machine use cutting torch
2. Use for Potable CNC flame cutting machine
3. Balanced pressure structure design
2) Description:
1> Structural ?Features
1. It is made of high quality forging brass.
2. Balanced pressure structure design.
3. It adopts silver solder, which can effectively avoid leakage.
4. O.D.of the tube:30 mm
5. The length of the tube:85mm,180mm,250mm,370mm,450mm.
6. The gear rack can be installed at 4 different position with 90 degrees between two positions.
7. It is suitable for balanced pressure cutting nozzle with cone of 30 degrees.
3) Applications:
Oxy-fuel cutting torch is suitable for use in ?in multi-head flame straight strip cutting machines, ?digital control multi-strip cutting machines and H section steel cutting machines,and is used to connect the cutting nozzle, cutting steel and other metal materials. Cutting Torch is the main tool of gas cutting machine, also known as the torch. the fuel gas and oxygen mixture in the cutting torch, in the form of heat and has a preheating flame shape, in center of the preheating flame, the high pressure oxygen flow is injected for flame cutting work.
?
4) Specifications:
Model?Number | LT-GJ-ZT |
Brand?Name | Longteng,?OEM |
Place?of?Origin | Wuxi,?China?(Mainland) |
Certification | CE,ISO |
Loading?Port | FOB?Shanghai |
Payment?Terms | T/T,?L/C,?Western?Union |
Material | Brass |
Working?form | other |
Driving?form | Automatic |
Electric?current | Direct(A) |
Type? | Injection-type?torches? |
Woking?pressure? | 254?KN |
Thimble?Length (mm) | Cutting?Thickness (mm) | Rack?Length/Modulus | Acetylene Cutting?Tips | Propane?Cutting?Tips | Inlet?connection |
85 | 300 | ????????/ | G02#0-#5 | G03#0-#5 | M12*1.25 |
180 | 300 | 150/1 | G02#0-#5 | G03#0-#5 | M12*1.25 |
250 | 300 | 210/1 | G02#0-#5 | G03#0-#5 | M12*1.25 |
370 | 300 | 210/1 | G02#0-#5 | G03#0-#5 | M12*1.25 |
450 | 300 | 310/1 | G02#0-#5 | G03#0-#5 | M12*1.25 |
5) Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable
