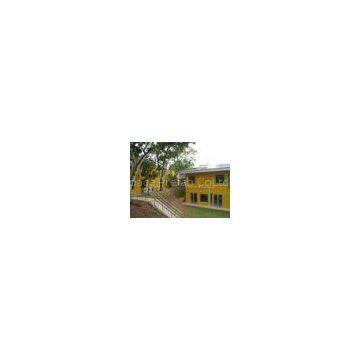

Portable Commercial Buildings for School Project - Galvanized Steel Structure, Modular

Portable Commercial Buildings for School Project - Galvanized Steel Structure, Modular

Description:

? Whether it\'s for portable classrooms, modular offices, modular medical buildings, or other types of prefabricated buildings, our single-source design-build modular construction approach can provide for all of your temporary or permanent modular building requirements.
?

It’s demountable.?7 units packed to one?40 HQ during delivery, so it is suitable for international transportation.???

Specifications of Each Unit:

I.?Dimension(mm) & Weight(kg)

???L=6055mm, W=2435mm, H=2790mm

II. Steel Frame: Galvanized Steel Frame with Marine Paint Finishes?

??? Load bearing - floor load: max. load capacity 2.0 kN/m2 (200 kg/m2)

??? Capacity?- wind load: 25 m/s (90 km/h)

III.?Wall : 50 - 100mm thick Sandwiched Panel?

IV.?Insulation : 50-100mm thick Rockwool or Neopor EPS

V. Door: 900 x 2100 mm Alum. Frame Metal Door or PVC Door

VI. Windows: 800 x 1000 mm Alum. Frame or PVC Window

Competitive Advantage:

Knock-down Panel wall saves transport and storage space

Top and bottom are pre-assembled in the factory in order to minimize the on-site work

With firm structure, the earthquakes and typhoons can be resisted

With the insulation material of rock wool and Noepor polystyrene, good fireproof performance is available.

Modular design, be linked on unlimited extension

Easy to be repaired and maintained for high standardization.

Life time 30 years.
