58kHz Frequency EAS Source Tagging With Resonator Store Retail Security Labels

EAS?Source?Tagging

58kHz?Frequency

label?length?45mm?±?0.2mm

label?width?10.8mm?±?0.2mm

Low?Density?Polyethylene?0.12mm

Detailed Product Description

sourcing tag

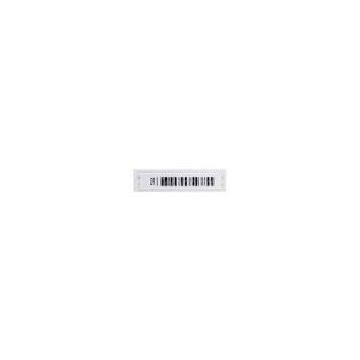

The Q001 Label provides adequate detection and very high deactivation performance.

sourcing tag????????????????????????????
Low-price?AM labels are available in a wide range of standard and custom styles and are available in sheets and rolls to accommodate retailers with source-tagging and other in-store product protection requirements.


Electrical Specifications
Frequency : 58kHz
Deactivation : 100%
Operating Distance: Up to 2m (8ft) in Dual Pedestal System.

Materials of Construction
1 . Plastic housing
2 . Resonator
3 . Laminate
4 . Bias
5 . Adhesive
6 . Release Liner
plastic housing : Polystyrene/polyethylene 0.35mm thickness.
resonator(s) : Amorphous alloy material.
Laminate : Low Density Polyethylene / Polyester /Polyethylene 0.12mm
Bias : Semi-hard magnetic material
Laminate : Low Density Polyethylene/Polyester 0.08mm
Adhesive : Double-coated acrylic-based adhesive
Minimum peel strength:≥15 N/25mm
release liner : Double-sided, silicon-coated Kraft liner 0.12mm thick

Environmental Constraints
Shelf Life: Two year from date of manufacture when Labels are stored between15-32 (60°F -90°F) and 30-80%RH.

Temperature: Maximum storage temperature not to exceed 50 (122°F) for 96hours at 80% RH.
?

Humidity: Unaffected by 80% humidity at 50(122°F), up to 96 hours

Usage Instructions
Place in least conspicuous location.
Do not cover warnings, expiration dates or important consumer information.
It is recommended that the surface to which the label is applied be clear and free of all dirt, grease, oil, etc.
Ambient magnetic field of labeled product greater than 100mG may result in reduced label performance.
Label not to exceed temporary magnetic field exposure greater than 8 Gauss.
