Product Details
| Brand Name | VOTOO | Place of Origin | China | |
| Model Number | VP-2400500LED |
Product Description
Certification:CE,ROHS

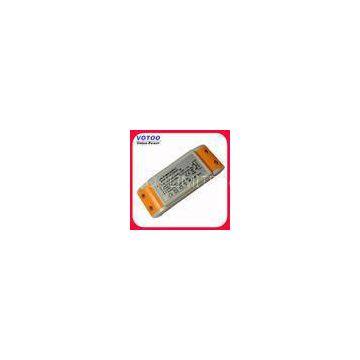

High Power 12W 24v Constant Voltage 500ma LED Driver Transformer , Power LED Driver
Quick Detail:
??24v 0.5a constnat voltage led driver ?Universal Input 100~240VAC 50/60Hz Material: ABS+PC Certificate: CE & RoHS Color: white orange blue Warranty: 1 year ?Full range input for all units 100% burn-in before shipping Ripple & Noise: 1% of output voltageFeatures:
o Universal Input 100~240VAC 50/60Hz
o Output Voltage: 24V
o Output Current:500mA
o Power:12Watt
o Small volume, light weight, high efficiency.
o Cooling by free air convection.
o 100% Full load burn-in test.
o One year warranty.
o Ripple & Noise: 1% of Output Voltage
o Leakage Current: 0.25mA
o No load power Consumption
o Working Temperature:0-40°C Max
o Efficiency:85%Min
o High Efficiency
o Short Circuit Protection
o Over Voltage Protection
o Over Current Protection
o Green Circuit Design
o Accurate information and descriptions.
o All orders are shipped on time.
o All items are fully inspected prior to shipping to meet international standards by our QC staffs.
o All items are with CE RoHS approval to ensure the products quality.
Weight: 90g
o Dimensions: 115.0 x45.0 x 29.0mm
Specification:
?
|
OUTPUT |
DC VOLTAGE |
24V |
|
OUTPUT POWER |
12W |
|
|
CURRENT RANGE |
500mA |
|
|
INPUT |
VOLTAGE RANGE |
110VAC -264V AC |
|
FREQUENCY RANGE |
50-60Hz |
|
|
EFFICIENCY(Typ.) |
85% |
|
|
ENVIRONMENT |
WORKING TEMP. |
-0°C ~ +40°C (Refer to output load derating curve) |
|
STORAGE TEMP.,HUMIDITY |
-10°C ~ +70°C 10~95% RH |
|
|
COOLING METHOD |
BY FREE AIR CONVECTION |
How to Install?
Connect power supply to the supplied unit. Power supply must be connected to a working electrical AC line with a voltage of 100-240V. Do not install power supply in locations with high humidity, dust or strong direct sunlight. The power supply should be installed in a location with good airflow. Power supply can only be installed indoors.
?
?
Applications:
LED strip light 3528 5050, ceiling light, wall light, panel light, tube light, spotlight, plug-in light, LED tube etc.
