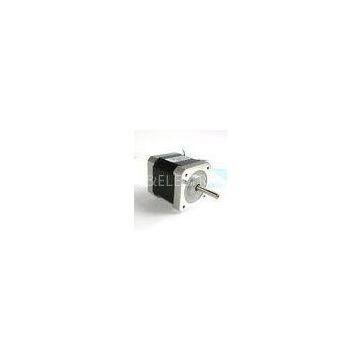

Bipolar / unipolar Hybrid Stepper Motors 42mm 0.9 , NEMA 17 for robot 42BYGH

FOB Price

Negotiable / Set

1 Set(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	JK		Place of Origin	China
Model Number	JK42HS,39BYG

Product Description

Delivery Time:FOR SAMPLES , 7-10 days For batch . 15-25days.
Certification:CE,ROHS ,ISO9001

Bipolar? / unipolar 2 phase stepper motor , 42mm NEMA17 0.9 degree

Nema 17 Hybrid Stepper Motor Model Number: JK42HS,39BYG Phase: 2 Phase Lead Wire (No.): 4 or 6 wire Structure: Hybrid Step Angle:? 0.9° Motor Height: 42mm Holding Torque: 1.58Kg.cm - 4.4Kg.cm Function: Control Speed: Low or High speed Usage: Industrial Certification: CE, ROHS, ISO9001 Shape: Square ? Applications:Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor

0.9° ?42mm 2phase hybrid stepper motor? NEMA17/ 0.9 degree stepper motor 42mm size/ bipolar step motor/unipolar 42mm stepper motor/12v stepping motor

Description:

0.9 degree Size 42mm Hybrid stepper motor.? 3D Printer stepper motor

42mm size stepper motor , NEMA17 stepping motor,

Small stepping motors, 2 phase 42mm stepper motor, Stepper motor 42mm size

Hybird Stepper Motors
1) CE and RoHS approved
2) We can develop customer?design version

Applications:

Use for robots stepper motor, electronic automatic equipment stepping motor , medical instrument stepping motor,advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper motor, textile machinery stepper motor.Cnc router stepper motor.

Specifications:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
( °)	(L)mm	A	Ω	mH	kg.cm	No.	g.cm	g.cm2	Kg
JK42HM34-0956	0.9	34	0.95	4.2	4	1.58	6	120	35	0.22
JK42HM34-0606	0.9	34	0.6	10	9.5	1.58	6	120	35	0.22
JK42HM34-0316	0.9	34	0.31	38.5	33	1.58	6	120	35	0.22
JK42HM34-1334	0.9	34	1.33	2.1	4.2	2.2	4	120	35	0.22
JK42HM40-1206	0.9	40	1.2
