China supplier centrifugal casting heat resistant furnace roller

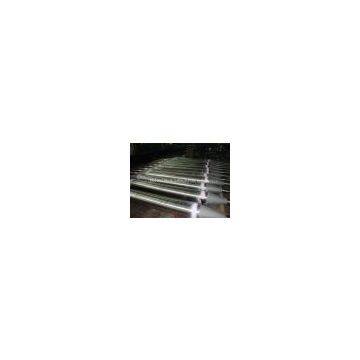

centrifugal casting heat resistant furnace roller

Name:

Furnaceroll, furnace rollers before/after coating, charge discharge rollers, supportroll, idler roll, guide roll, deflector roll, stabilizer roll,V-rolls, hearth roll, water cooling roll, quench roll, sink roll, working roll,drive roll, wet and dry roll, etc.

Weoffer custom engineering and production for assemblies and individualcomponents like machined tubes/barrel body, trunnion, shafts/journals andrefurbishment of existing rolls.

Specification:

OD.50mm to OD.1600mm

Properties:

good heat,corrosion, wear resistant properties

Materials:

High nickel and high chrome heat resistant alloys, cobalt basealloys, like HU, HT, HK, HP, HW, 24/24NbTiZr, 50Cr/50Ni (2.4813), 1.4865,1.4849, 1.4848, 1.4410, 1.4059, 1.4841, 1.4845, 1.4852, 2.4879 or as percustomer’s requirements

Process:

Centrifugalcasting for barrel/tube, forging for journal/shaft, static or investment orsand casting for cone/trunnions, welding and machining and grinding

Application:

Workingat high temperature environment on average: 800-1200℃, which are used in the steel mills, likeCAL（continuous annealing line),CGL(continuousgalvanizing line)

QA&QC:

Wehave in-house facility for each inspection: Composition by Spectrometer; Sizetest, Mechanical test, NDT, UT, RT, PT, MT, ET

Standard:

ANSI,ASTM,ASME,DIN,GB etc.

Certificates:

ISO9001:2008;3.1B Material Certificates, SGS Certificate.

Qualitycontrol:

We havein-house facility for each inspection:

Chemicalanalysis by spectrometer

Measurementinspection

Mechanical properties testing, pressure testing, non destructiveinspection (NDT): ultrasonic, X-ray, PT, eddy current testing

Testing items:

Chemical compositions, mechanical properties, ultrasonicinspection, X-ray, dye penetrate test, boroscope, eddy current testing,microscope, pressure test

Advantages:

Concentratein Petrochemical Industry more than 30 years

Completeengineering and manufacturing services, tooling and gauging design, integratedCAD/CAM system, testing and measuring including CMM

Experiencedworkers for forging, machining and welding guarantee excellent quality andprompt delivery

Focusedsales and customer-service team

In one word, we do everything we can to make your job easier.
