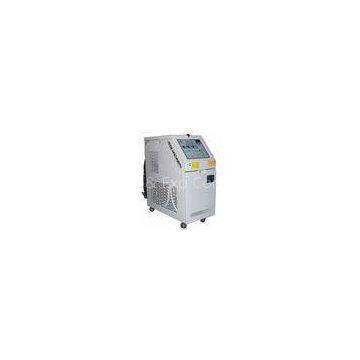

Heater Recirculation Process Mold Water Temperature Controller Unit 180 Applied to Edger / Bathroom
- T/T L/C D/P D/A
- 7 days
You May Like
-
Water Circulation Mold Water Temperature Controller Unit 150 for Extrusion Production / Stone Equip
-
Water Heating Mold Water Temperature Controller Unit 150 for Injection Molding / Peeling Machine
-
High Temperature Circulation Process Water Temperature Controller for Rubber and Plastic, Wood Lathe
-
Microprocessor Heater Circulation Process Mold Water Temperature Controller Applied to FRP Equipment
-
Heating Mold Thermo Recirculation Water Temperature Controller Unit 180 Used for Coating Equipment
-
Automatic Thermo Recirculation Water Temperature Controller Unit 180 Equiped With Oil Press / Smelt
Product Details
| Brand Name | AODE | Place of Origin | China | |
| Model Number | AEWH-10 |
Product Description
Certification:CE & ISO9001:2000
? ? ? ?AEWH-10 Mold Temperature Control Units(MTC) are used to preheat a process to the desired operating temperature by engaging the unit\'s electric immersion heater and recirculating the water in the system. Water type MTC circulate high temperature heat transfer fluid through the process application for temperature control. AEWH series MTC offer the range of temperature control from 15°C to 150 °C.
SAFETY PROTECTIONS:
No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.SPECIFICATION DETAILS:
|
No. |
Part |
Specification |
Data |
|
1 |
model |
AEWH-10 |
|
|
2 |
power supply |
3N-380-50HZ |
|
|
3 |
Hot medium |
water |
|
|
4 |
control mode |
PC board Self - optimized microprocessor |
|
|
5 |
accuracy of temp. control |
PID±1℃ |
|
|
6 |
Max. temperature |
150℃ |
|
|
7 |
Min. temperature |
25℃ |
|
|
8 |
heating power |
9KW(adjustable) |
|
|
9 |
heat exchange area |
0.1M2 |
|
|
10 |
Pump |
model |
RGZ-10-180 |
|
power |
0.75KW |
||
|
lift |
18M |
||
|
flow |
100L/min |
||
|
11 |
heating method |
Direct heating(Indirect cooling) |
|
|
12 |
Pipeline |
hot medium inlet/outlet |
DN10*4(adjustable) |
|
cooling water inlet/outlet |
DN15(adjustable) |
||
|
drain oil port |
DN15(adjustable) |
||
|
13 |
Temp. Controller |
model |
P6100(WEST) |
|
modulating action |
Dual PID control of heating & cooling |
||
|
Temp.interaction stick |
K- thermocouple |
||
|
display status |
Respectively display set point & real point |
||
|
output select |
SSR output |
||
|
14 |
Frame Size |
L*W*H(mm) |
700*3 |
