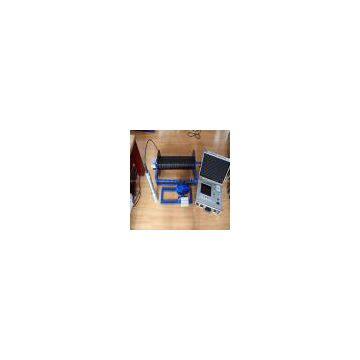

Borehole Camera For Karst Development Discrimination JKX Series

Factory supply JKX Series Borehole Inspection Camera

 Main Applications and Features

1. JKX-3   Borehole Inspection Camera adopts reflective axicon lens to take 360° hole wall images, image acquisition and processing by means of computer to form a continuous hole wall developed image. The hole wall image are developed following the order N→E→S→W→N. The longitude connection of images are jointed as per the order of depth, thus the overall hole-wall image is fully understand at a glance.

2. Data Processing Function
· Browsing, real-time display of position and depth
· Marking of images and literal texts
· Making of interpretation lines on images
· For convolution rotation, see coregraph
· Calculate the inclination of stratum construction
· Measure the thickness of rock stratum and the width of cracks

Technical Specifications

• 1Vp-p PAL TV Signal 75Ω Video Output

• 1Vp-p PAL TV Signal 75Ω Video Output

• Definition: 450TVL

• Viewing Angle: 360° Hole Wall

• Lighting: Built-in K3200° Trichromatic Lighting Ring

• Probe Diameter: φ70mm

• Adaptation Aperture: φ75~φ300mm

• Power Supply: AC220V±10% 50Hz

• Software Operating Environment: Win2000/XP

• Adapted Hole Depth: 0~2000mm Clear Water Hole or Dry Hole
