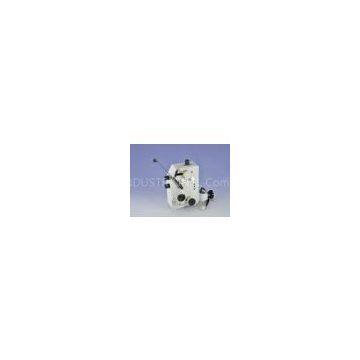

Coil Winding Electronic Wire Tensioner For Wire Jump Prevention
- 0 Unit / Units per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Solid / Compact Electronic Wire Tensioner With 1.2A , DC24V
-
Compact Electronic Wire Tension With 5m / s
-
5m/s Electronic Wire Tensioner Device For Wire Jump Prevention
-
High Speed Servo Wire Tensioner For Coil Winding Machine SET-2000-R
-
1.2A Coil Winding Servo Wire Tensioner With 0.02mm - 0.17mm SET-200-R
-
DC24V Servo Wire Tensioner Coil Winding With Motor SET-100-R
Product Details
| Brand Name | KIMCHEN | Place of Origin | China | |
Product Description
Design: Compact?and?Solid Electronic Tensioner RM Series electronic tension device Coil Winding Electronic Tensioner
?
Coil Winding Electronic Wire Tensioner For Wire Jump Prevention
?
|
Place?of?Origin: |
Dong?Guan?China |
|
Brand?Name: |
KIMCHEN |
|
Model: |
MET?Series |
|
Feature: |
Control?System?are?packed?within?the?body |
|
Design: |
Compact?and?Solid |
|
Tension?test?condition: |
Wire?speeding?5m/s?refer?roundness?Bobbin |
|
Power: |
DC24V |
|
Electric?Current: |
1.2A |
|
Product?Size: |
140mm*140mm*45mm |
|
Weight: |
0.56KG |
Detailed Product Description:
MET Series Electronic Tensioner is by integrating the electronic system and non-contact breaking design, there is barely any contact in the core mechanism of the main tension, wheel, except the connecting bearing .This combination provide smooth, stable and consistence tension, even in high speed winding. The non contact designs also reduce wear and tear of most of the critical components as to cut down maintenance cost. All MET comes with “ Auto Tension Fine Tuning System”. By sensing the movement of the tension arm, the control system will fine tuning the tension automatically.
Control system are packed within the body.
MET Series is solid and compact in design. It operates with DC24V electronic power.
MET Series also comes with wire jump prevention and wire breakage detection.
MET Electronic Tensioner Specifications
?
|
Model |
Tension?Range?(g) |
Applied?wire?diamiter(mm) |
|
METSS |
3 － 15 |
φ0.02－φ0.04 |
|
METS |
5?。?0 |
φ0.03－φ0.09 |
|
METM |
50?。?40 |
φ0.08－φ0.20 |
