Home > Products > Mechanical Wire Tensioner > Custom Mechanical Wire Tensioner YZ2M With 120g - 1000g
Custom Mechanical Wire Tensioner YZ2M With 120g - 1000g
- T/T L/C D/P D/A
- 7 days
You May Like
-
1000g - 5000g Coil Winding Mechanical Wire Tensioner TCLL
-
YZ Mechanical Wire Tensioner Device For Coil Winding Machine
-
Custom Coil Winding Mechanical Wire Tensioner with 5m / s
-
Coil Winding Electronic Wire Tensioner For Wire Jump Prevention
-
Solid / Compact Electronic Wire Tensioner With 1.2A , DC24V
-
Compact Electronic Wire Tension With 5m / s
Product Details
| Brand Name | KIMCHEN | Place of Origin | China | |
Product Description

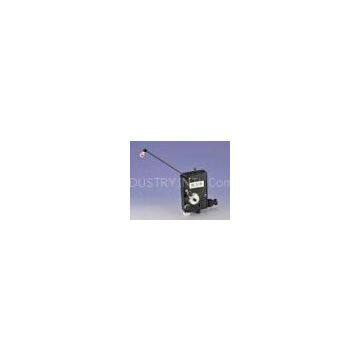

Custom Mechanical Wire Tensioner YZ2M With 120g - 1000g
Quick Detail:
coil winding tension Unit????????? coil winding wire tensioner Wire tensioner Mechanical wire tensioner|
Place?of?Origin: |
Dong?Guan?China |
|
Brand?Name: |
KIMCHEN |
|
Model: |
YZ?Series |
|
Tension?test?condition: |
Wire?speeding?5m/s?refer?roundness?Bobbin |
|
Application: |
Winding?machine |
|
Function: |
Tension?Control |
|
Product?Size: |
135mm*160mm*35mm |
|
Weight: |
0.43KG |
Detailed Product Description:
Mechanical Tensioner(tension device) is one of the vital parts in the coil winding process.It is used to ensure the consistency of the wire tension during the winding process.By using a tensioner,Wire Tension can be adujsted and pre-set to the require value according to the application so as to achieve appropriate winding condition,and to ensure the conformity of each coils technical parameters.
?
YZ?Mechanical?Tensioner?Specifications:
?
|
Model |
Applied?wire?diamiter(mm) |
Tension?scope(g) |
|
YZ3S |
φ0．02—φ0．04 |
2．5g—14? |
|
YZ2S |
φ0．04—φ0．08 |
9g—50? |
|
YZS |
φ0．06—φ0．14 |
20g—140? |
|
YZM |
φ0．12—φ0．40 |
70g—600? |
|
YZ2M |
φ0．18—φ0．45 |
120g—1000? |
Contact Us
- KIM CHEN INDUSTRY INTL Company
- Contact nameMs. Queeny Ho Chat Now
- Phone86-769-86018114
- AddressNO67,Baihua Road,The 3th Industrial Area, Shijie Town,Dongguan City Guangdong Province 523290 China., Dongying, Shandong
