Home > Products > Wall Mount Power Adapter > AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit

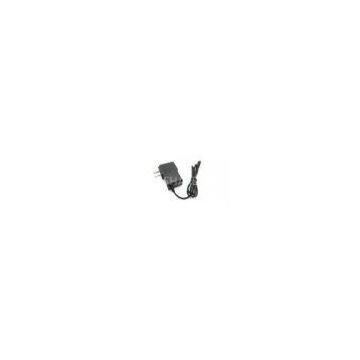

AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit
- T/T L/C D/P D/A
- 7 days
You May Like
-
AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac
-
12V 500mA Wall Mount Power Adapter Impact Resistance RoHS For Telephones
-
Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer
-
High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
-
24V 3A LED Desktop DC Power Supply Impact Resistance , CE RoHS Certified
-
High Frequency Wall Mount Power Adapter 12V 3A UK Plug For CCTV Camera
Product Details
| Brand Name | RAYTOP | Place of Origin | China | |
| Model Number | ET0500200 |
Product Description
Certification:CE, RoHS, FCC
AC/DC Wall Mount Power Adapter US Plug 10W DC 5V 2.0A For ADSL , Short Circuit
Quick Detail:
10Watt Switching Power Adaptor, Desktop Style, DC 5V,2000A, 5.5x2.1mm Connector.
Specs:
Input: AC100-240V, 1.2A max.
Frequency: 50/60Hz
Output: DC5V, 2000mA
DC Cable: 22AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Tip: 5.5x2.1mm (optional)
Features:
-High efficiency:>85%;
-Protection: Short circuit protection, over voltage protection, over current protection.
-MTBF: 50,000 hours.
Approval: CE, RoHS, FCC, UL, SAA
Warranty: 2 years
Description: ?
This is an AC to DC wall-mount power adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.
Note:
indoor use only.
Applications:
widely used for LED light, SATA, ADSL, digital photo frame, printer etc.
Specifications:
|
Input |
Rated Input Voltage |
AC100~240V |
|
Input Voltage Range |
AC 90~264V |
|
|
Rated Frequency |
50/60 Hz |
|
|
Input Frequency Range |
47~63 Hz |
|
|
Input AC Current |
0.2A |
|
|
Inrush Current |
30A |
|
|
Output |
Rated Output Voltage |
DC5V |
|
Rated Output Current |
2000mA |
|
|
Rated Power |
10W |
|
|
Ripple and Noise |
120mV p-p |
|
|
Standby Power Consumption |
0.3W |
|
|
Turn-on |
5s |
|
|
Hold-up |
20s |
|
|
Over Voltage Protection |
Yes |
|
|
Over Current Protection |
Yes |
|
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
|
Reliability |
Hi-pot |
3000Vac |
|
Insulation Resistance |
Input to output at 500Vdc |
|
|
Leakage Current |
5mA |
|
|
EMI Standards |
FCC Part 15B Class B |
|
|
RoHS Compliant |
Yes |
|
|
MTBF |
50,000 hours |
|
|
Burn-in |
405 ℃, full load, 4 hours |
|
|
Drop Test |
6 direction, each one time from height 1.0M |
|
|
Environmental |
Operating Temperature |
0~40℃ |
|
Operating Humidity |
10~80% |
|
|
Storage Temperature |
-20~65℃ |
|
|
Storage Humidity |
0~90% |
|
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
|
Warranty |
2 Years |
Competitive Advantage:
-Open private model w/o extr
