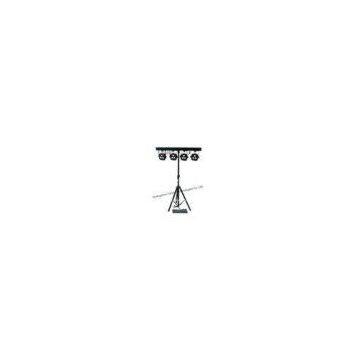

DMX Professional LED Stage Lighting , Parbar 3*15w Quad LEDs

Model Name:

PARBAR 4-Way Kit 3x 15W Quad LEDs DMX

Model No.:

YL-S003

Power Supply:

AC110v--240v? 50/60Hz

Power consumption:

180W

Light Source:

3x15CWLEDS (5-in-1)*4 (R12, G12, B12, W12, A12)

Beam Angle:

18, (45, 60 degree is selectable).

DMX Channels:

6/23

Control mode:

auto, dmx512, foot controller, master/slave, sound active

Certification

CE,?RoHS

Package Size:

100*23*23cm

Gross Weight:

10kgs

Channel

Level

?Function

Ch1

0-255

General-dimmer. Linear intensity adjustment 0-100%

Ch2

?0-255

?Linear Strobe frequency adjustment from 1 to 20HZ

Ch3

?0-50

?DMX Mode

51-100

?Step changing Speed from slow to fast

101-150

Cross fade Speed from slow to fast

151-200

?Strobing Speed from slow to fast

201-255

Sound active

Ch4

0-255

? Auto running Speed from slow to fast

Ch5?

0-255

Red Linear adjustment 0-100%

Ch6?

0-255

Green Linear adjustment 0-100%

Ch7?

0-255

Blue Linear adjustment 0-100%

Ch8?

0-255

White Linear adjustment 0-100%
