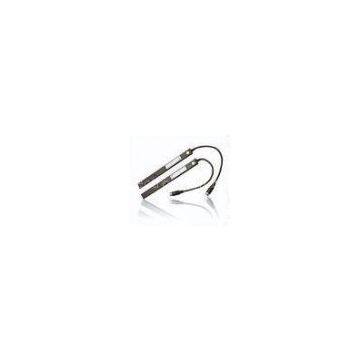

118mm Elevator Light Curtain , 96beams Light Curtains Safety IP54
- T/T L/C D/P D/A
- 7 days
You May Like
-
IP54 Residential Elevator Light Curtain , Safety Light Curtain With 96beams
-
1840mm Elevator Light Curtain , 33beams Villa Lifts Elevator Parts
-
Two In One Elevator Light Curtain IP54 For Mitsubishi Elevator TUV
-
45rms Elevator Light Curtain / Elevator Spare Parts With 17 Diodes
-
KONE Elevator Parts / 60rms Elevator Light Curtain For Villa Lifts
-
High Beam Elevator Light Curtain , Safety OTIS Elevator Parts
Product Details
| Brand Name | Channel | Place of Origin | China | |
| Model Number | SFT-620 |
Product Description
Certification:BM TRADA
118mm Elevator Light Curtain , 96beams Light Curtains Safety IP54
Quick Detail:
Elevator light curtain
SFT-620
number of diodes 17
118mm distance between diodes
Maximum beams (distance≥400mm):96beams
Minimum beams (distance<?400mm): 33beams
Description:
Ordinary
Divide from the middle
Beautiful external appearance ,easy installtion,suitable for most brand elevators
Applying reliable MCU microchio,reasonable design and stable performance
Appling appropriate cables and connection-pegs enable them have long working life
Applications:
Suitable for most brand elevators
Specifications:
|
Model |
SFT-620 |
|
Number of diodes |
17 |
|
Distance between diodes |
118mm |
|
Maximum beams (distance≥400mm) |
96beams |
|
Minimum beams (distance<?400mm) |
33beams |
|
Highest beam |
1840mm |
|
Lowest beam |
23mm |
|
Size |
(T) 10 x (W) 24.5 x (H) 2000mm |
|
Detecting distance |
0 - 4000mm |
|
Vertical displacement at 0mm |
±?20mm |
|
Horizontal displacement at 0mm |
±?3mm |
|
Angular displacement at 0mm |
±?10degrees |
|
Cable reliability |
20 million door movements |
|
Light immunity |
≤1,00,000 LUX |
|
EMC compliance |
emissions to EN 12015, immunity to EN 12016 |
|
Operating temperature range? |
-20℃-+65℃ |
|
IP rating |
IP54 |
|
Vibration test |
random vibration 20 to 500Hz/0.002 g2/Hz 4hrs per axis; sinusoidal vibration 30Hz 3.6g rms 30mins per axis |
|
Response time (NPN or PNP) |
45rms |
|
Response time (Relay) |
60rms |
|
Timeout function |
15 Sec 3 non-adjacent diodes |
Specifications:
Competitive Advantage:
Application to centre-opening,side-opending and villa lifts
Passed Germany TUV tests,and comply with related international standards
Faults tolerance feature,automatically shield the faulted diodes and remind the users
Applying reliable MCU microchio,reasonable design and stable performance
CPU dipulse synchronization,achieving better EMC/EMI performance
Advanced techincs and equipments,reliable SMT surface padding techniques
Appling appropriate cables and connection-pegs enable them have long working life
NPN/PNP output versions available for users for (without controller)
