1R1G1B1W Advertising P20 Outdoor Led Display Waterproof For Bus Station
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Brightness Full Color Rental Led Display Screen , P20 Outdoor LED Video Wall For Stage
-
Energy Saving Stadium Perimeter Led Display For Commercial Advertising
-
IP65 Outdoor Full Color Sport Stadium Led Display P10 Waterproof
-
PH12 Electronic Portable Stadium LED Display With 1/4 Scanning
-
High Definition/brightness Sports Stadium Led Display Screen With Horizontal 135 for saving cost
-
Smart Outdoor Curved Stadium Led Display High Resolution 32 Inch
Product Details
Brand Name | Xiwan | Place of Origin | China | |
Model Number | BVO-20 |
Product Description
Certification:CE,Rohs

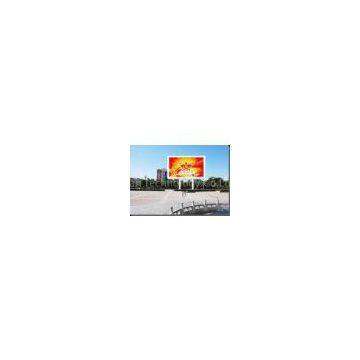

1R1G1B1W Advertising P20 Outdoor Led Display Waterproof For Bus Station
Quick Detail:
Cabinet weight (Kg) : 55 High resolution 50% energy savings BVO-12 outdoor full color LED display/LED screen is suitable for commercial and advertising display with advantages of High resolution, less power consumption high brightness and long lifetime.Description:
BVO series ultra low power outdoor LED display or LED screen are new products with XIWAN new technology. Xiwan have invested millions of dollars on this new technology. Dedicate to save energy cost for big LED display and improve image quality very effectively. We have now developed P10, P12, P16, P20 and P25, you can choose according to your own applications.
Qualified LED core from Epistars, Silan and other big brand.
Qualified LED driving from Meanwell
Specifications:
Item No. |
BVO-P20 |
Pixel Pitch(MM) |
P20 |
Module resolution |
16*8 |
Module size(MM) |
320*160 |
Pixel combination |
1R1G1B1W |
Pixel density |
2500 pixels/㎡ |
Driving way |
Static |
Cabinet size(MM) |
960*960 |
Cabinet resolution |
48*48 |
Cabinet pixel |
2304 |
The number of modules |
18 |
Cabinet type |
Fixed installation water proof iron box |
Cabinet weight (Kg) |
55 |
Average Power Consumption (W/㎡) |
≤100W/㎡ |
The maximum power(W/㎡) |
≤200W/㎡ |
Brightness (Cd/㎡) |
6500 |
Gray scale |
16bit(4096 levels) |
Refresh rate |
≥800 |
Brightness adjustment |
256 levels |
Frame frequency |
60HZ |
Input voltage |
110~220VAC |
Working temperature |
-20℃~+50℃ |
Work humidity |
10%-90%RH |
Best stadia |
≥12m |
The whole screen perspective |
H:135°;V:55° |
IP rating |
Front:IP65;Back:IP54 |
MTBF(hrs) |
1000 |
Life span(hrs) |
100000 |
Competitive Advantage:
5 advantages of our product
●High resolution
Achieve higher resolution while using an equal number of the pixels. it based upon extensive knowledge of the human vision system and our unique pixel layouts and proprietary algorithm, in Xiwan displays, individual pixels are not restricted to use in one pixel group, but instead participate in multiple \"logical\" pixels in their surrounding vicinity, meaning they can create sharper images and displays.
● Wide color gamut
Xiwan technology is bio-mimetic; it optimizes the match of display technology to the biological mechanisms of human vision.
●50% energy savings
Up to 50% reduction in energy consumption, in special circumstances, even more than 70%, it reduced the use-cost and greenhouse gas em
