Product Details
Brand Name | Wuzhou | Place of Origin | China | |
Model Number | wz |
Product Description

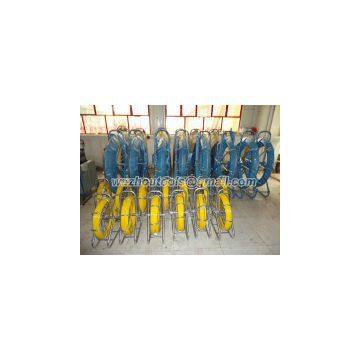

Duct Rodders applies in tow lead-rope through a pipe, it is auxiliary means. Surface smooth and high resilience, so the FRP perforator with ease passes the narrow channel. perforator consists of two parts: the glass fiber strengthen the level, the high-pressured low density polyethylene protective layer(smooth, firm ,can resist the adverse circumstance). It has time-saving reducing effort, improving efficiency, etc ,And can be used for telecom cables, cable pipe and cleaning and plastic pipe of cloths to put. when use draws out the FPR pole by the pulley, then with a corresponding metal joint, penetrates in the pipeline. When cleaning, guide-head will drive cleaning tools to clean the pipe; When arranges the cable, you may first leads the steel wire or the iron wire, then enters the pipe with the steel wire or the iron wire hauling cable.
The factory is China's largest producer of Duct Rodder.We produce Duct Rodder has 15 years of history, we have the advanced production equipment and production technology. Our Duct Rodder are exported to more than 60 countries ,and many Asia countries has agency.
Features and Benefits:
1-Light weight, durable, resistance to acid, alkali, aging resistant, corrosion resistant.
2-High tensile strength and bending properties, which make it to go through narrow pipes easily.
3-Good temperature adaptability, the product will not soften in hot weather/nor become brittle in cold weather. Its usability will not be affected by temperature.
4-Outer protect layer are made of high density polyethylene engineering plastic, which has good anti-UV capability.
5-Cover was coated with long-term UV-resistant polyethylene.
6-Its surface has the advantage of smooth, wear-resistant and long service life.
7-There are meter marks on the protect layer of duct rodder, which can be used for measuring distance. Marks are printed by professional printing machine, which has the advantage of strong adhesion, clear writing, waterproof, anti-ultraviolet, it can be still clear even after using many times.
8-There are several kinds of colors for the rod for your chosen.
Propertyvalue
Model specification4.5mm,6mm,8mm,10mm,11mm,12mm,13mm,14mm,15mm,16mmfor your choice, and we can also accept OEM order
Length30,50,60,80,100,120,150,180,200,250,300,350,400,450,500 meters for choice.
MaterialFiberglass (inner) and high density polytgtkebe(outer)
Density>1.9gr/cm3
Working temperature- 40 to + 80
Minimum pulling strength4000 N±5%
Tensile Modulus>46.500Mpa
Consistency of rod137gr/m
Flexural Modulus>46.500Mpa
Elongation at Break2.5-3%
Min. Bending Radius388m
Tensile Strength>15N/mm2
Environmental Stress & Crack Resistance>1000hr
